C-Lin

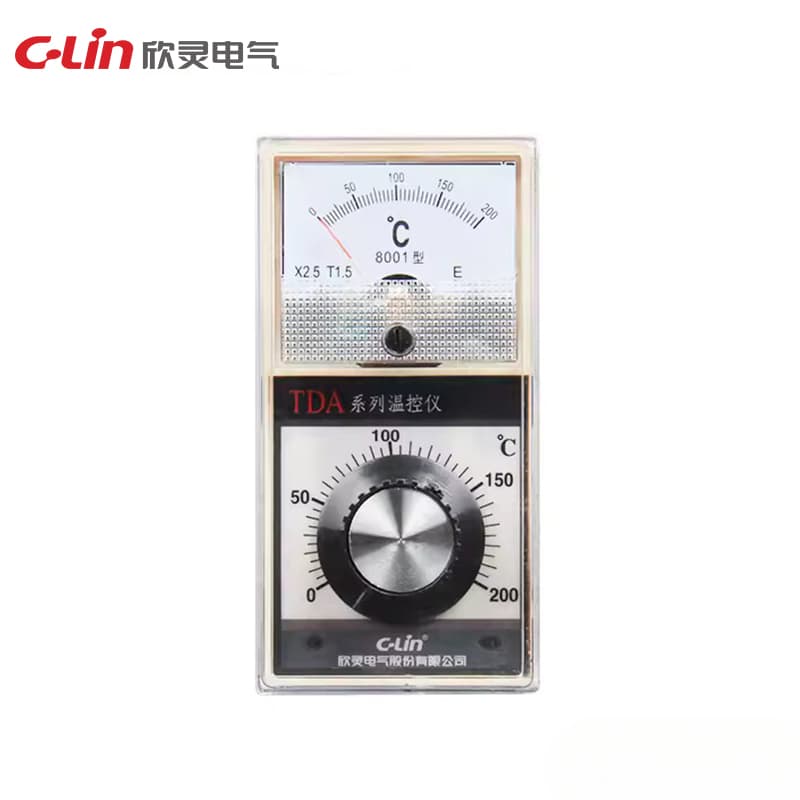

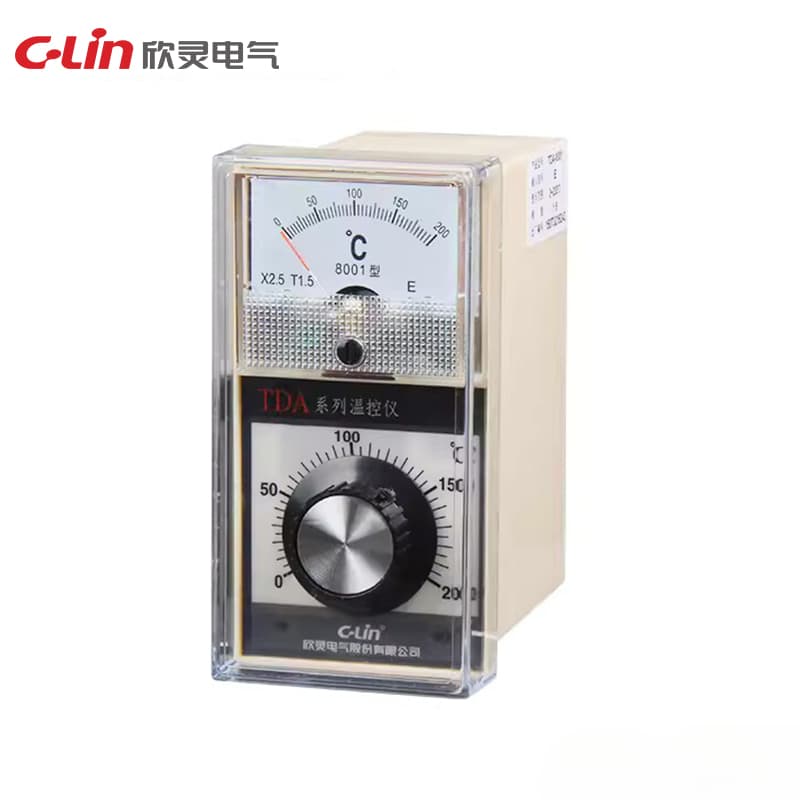

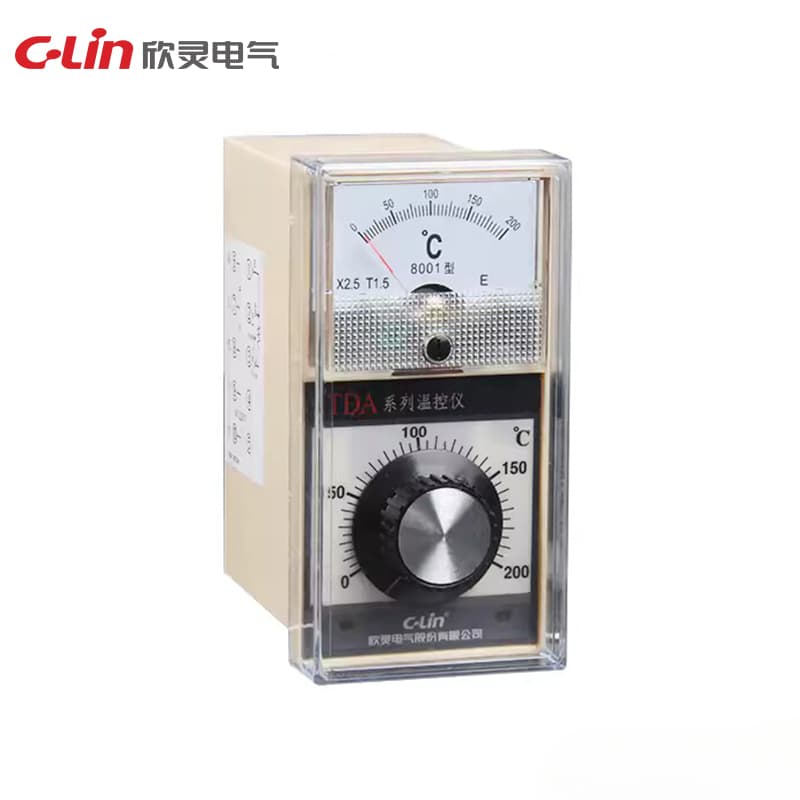

Temperature Indication Controller TDA Series

Name: Temperature Indication Controller TDA Series
Brand: C-Lin
SKU: TDA

Model Number: TDA

Input signal: Thermocouple: K, E; Thermal resistor: Cu50 Measurement error: ≤2.5 level Adjustment method: Two-position relay contact on-off control; Time proportional relay contact on-off control; Setting method: Potentiometer setting Working power supply: AC220V, AC380V Dimensions: 60×120×90mm Opening size: 55×115mm Installation method: Panel type

Request Quote

Technical Specifications

Model	TDA
Dimension	60×120×90mm
Hole size	55×115mm
Input signal	Thermocouple: K, E; thermal resistance: Cu50
Setting mode	Potentiometer setting
Supply voltage	AC220V, AC380V
Adjustment mode	Two-position relay contact on-off control; time proportional relay contact on_x0002_off control
Measurement error	≤ 2.5 class
Installation method	Panel type
