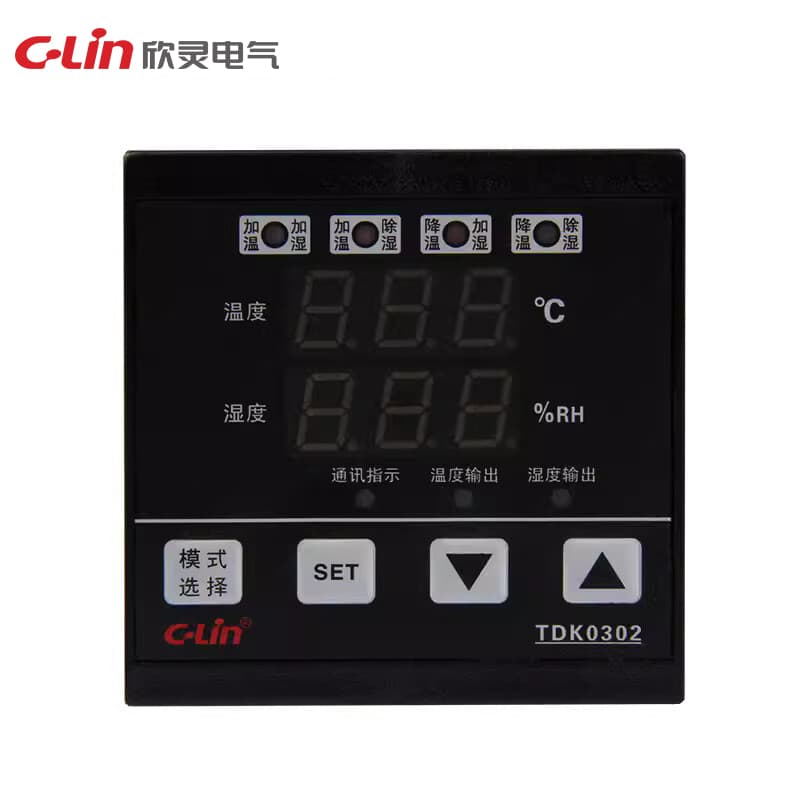

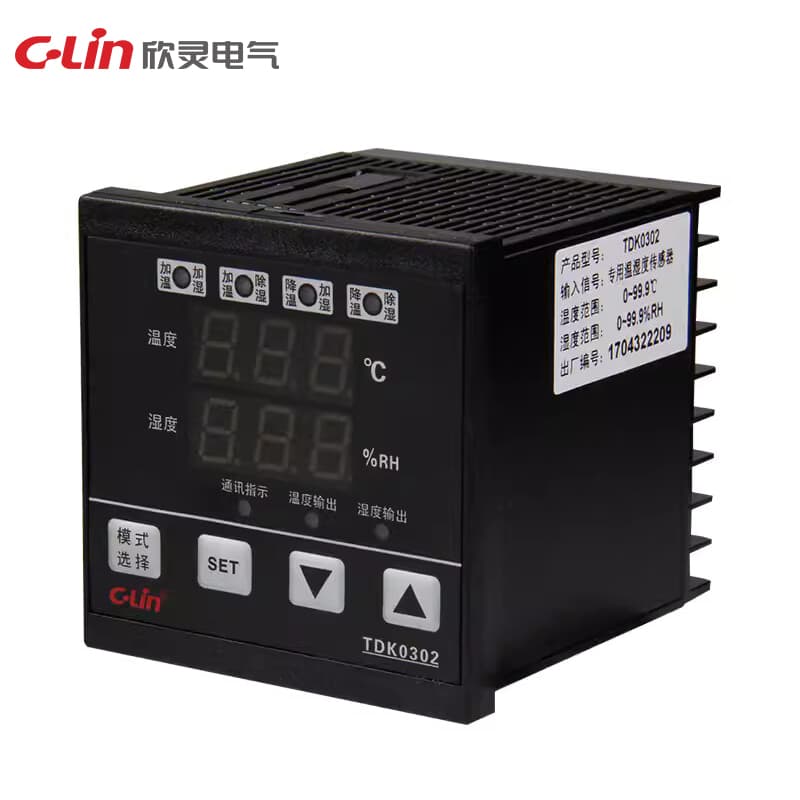

Intelligent Temperature And Humidity Controller TDK Series

Name: Intelligent Temperature And Humidity Controller TDK Series
Brand: C-Lin
SKU: TDK

Model Number: TDK

Temperature measurement: -40.0~99.9℃ Humidity measurement: 0~99.9%RH Measurement error: Temperature: (≤±0.5%FS); Humidity: (≤±4.5%FS) Control mode: Heating and humidifying mode, heating and dehumidifying mode Cooling and humidifying mode, cooling and dehumidifying mode Control output: one temperature and one humidity relay contact Contact capacity: 3A AC250V (resistive) Working power supply: AC/DC 100-240V Dimensions: 72×72×78mm Opening size: 68×68mm Installation method: panel type

Request Quote

Technical Specifications

Model	TDK
Dimension	72×72×78mm
Hole size	68×68mm
Control mode	Heating and humidification mode, heating and dehumidification mode cooling and humidification mode, cooling and dehumidification mode

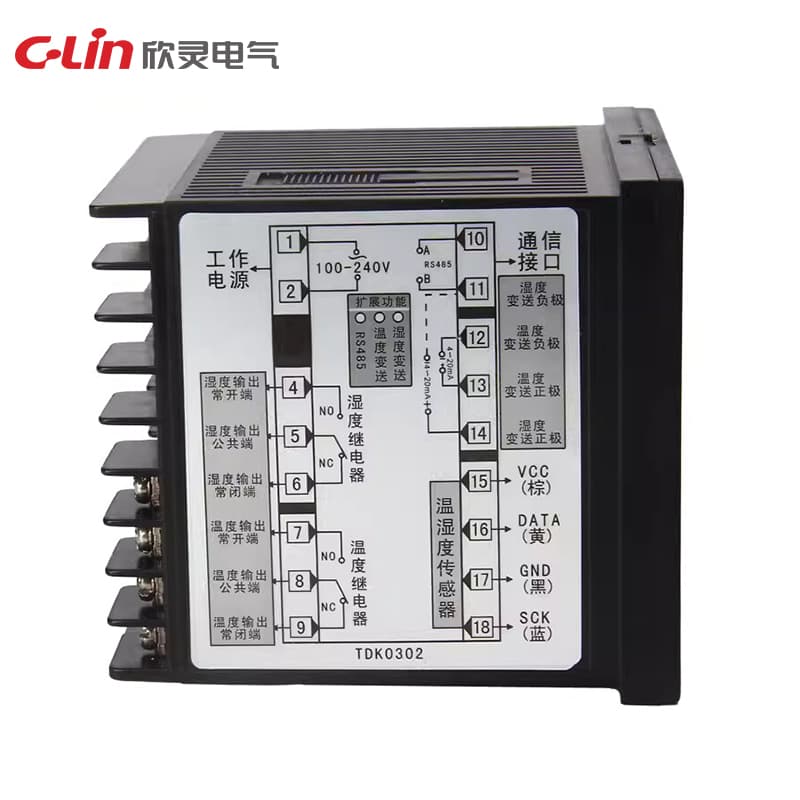

Control output	One-circuit temperature and one circuit humidity relay contact
Supply voltage	AC/DC 100-240V
Contact capacity	3A AC250V(resistive)
Measurement error	Temperature ( ≤ ±0.5% FS) Humidity ( ≤ ±4.5% FS)
Model description	C4: with RS485 module; B: with 4-20mA transmission output
Additional function	RS485 communication, transmission output
Humidity measurement	0~99.9% RH
Temperature measurement	-40~99.9°C
