Technical Specifications

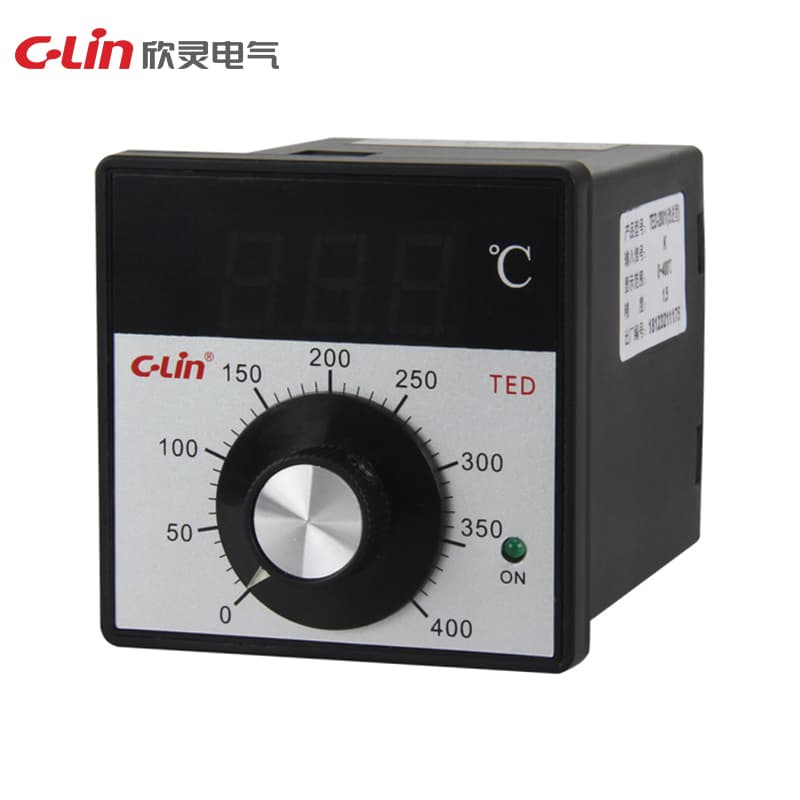

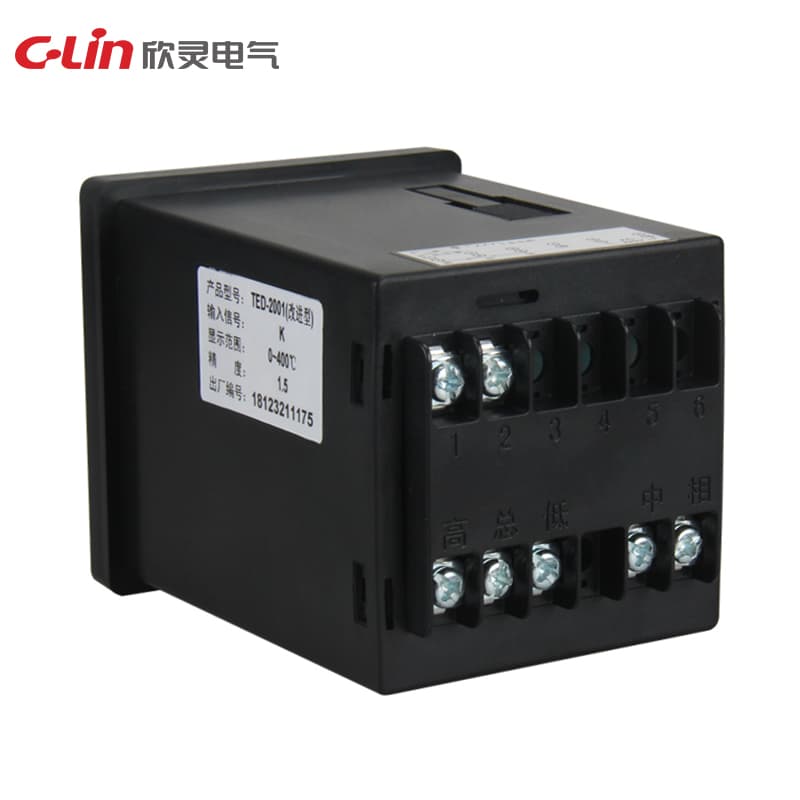

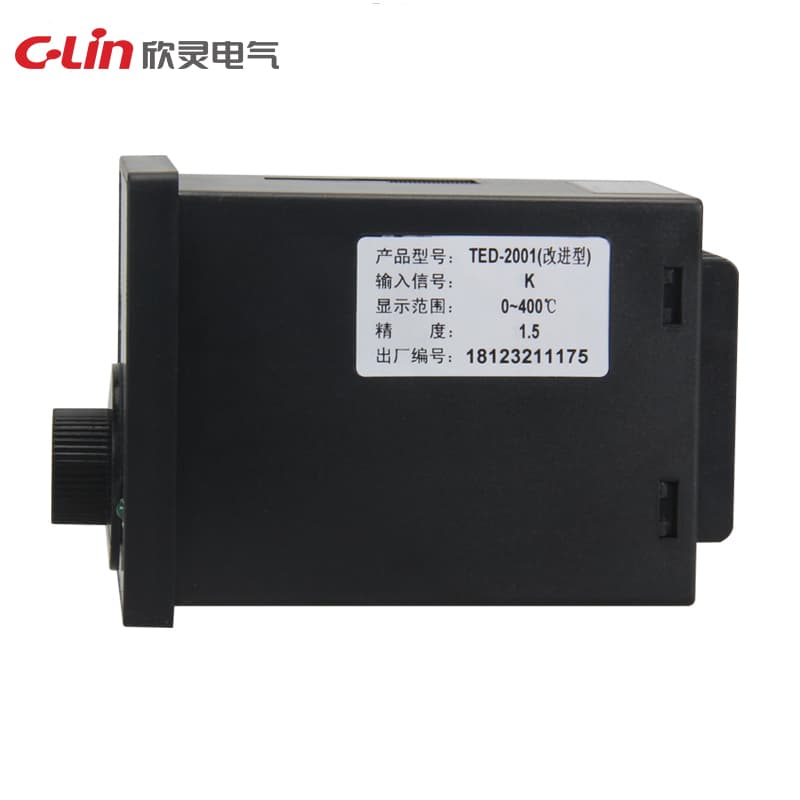

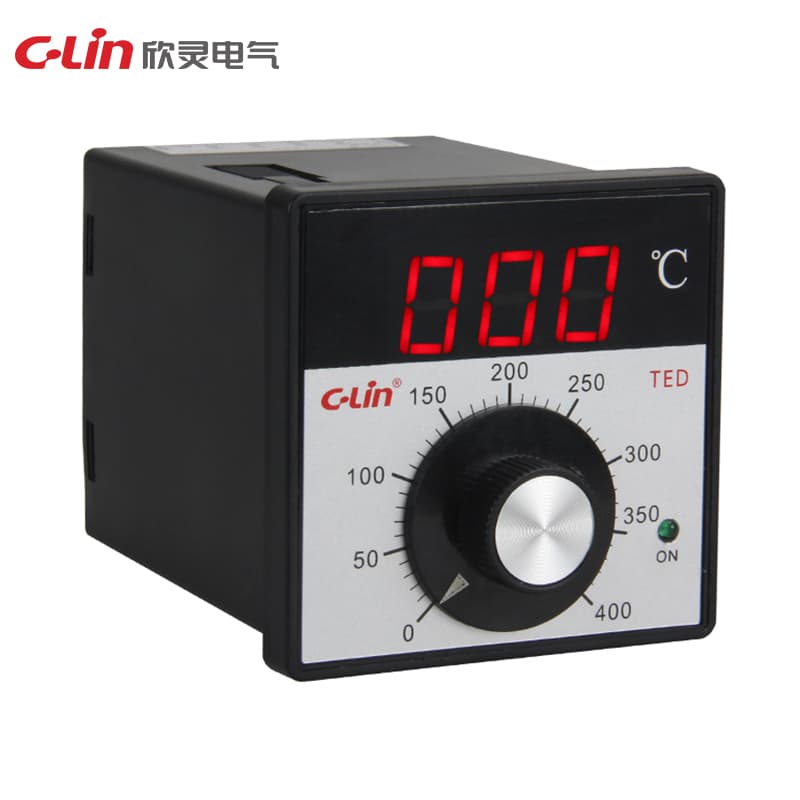

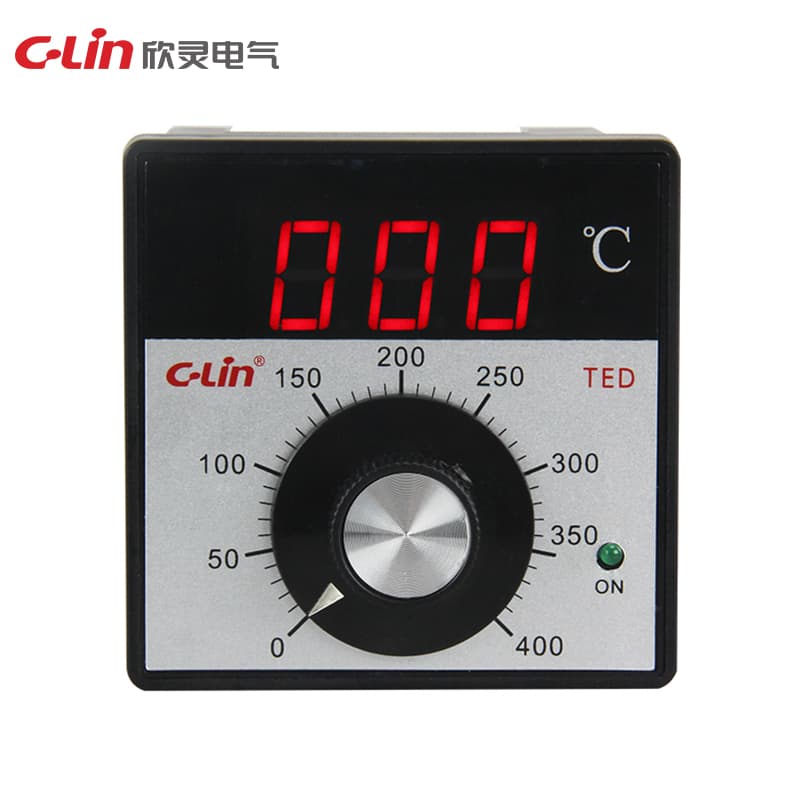

| Model | TED-2001 Improved |
| Dimension | 72×72×110mm |
| Hole size | 68×68mm |
| Input signal | Thermocouple: K, E; thermal resistance: Cu50 |
| Setting mode | Potentiometer setting |
| Supply voltage | AC220V, AC380V |
| Adjustment mode | Two-position relay contact on-off control Time proportional relay contact on-off control |
| Measurement error | ≤ 1.5 class |
| Installation method | Panel type |
