C-Lin

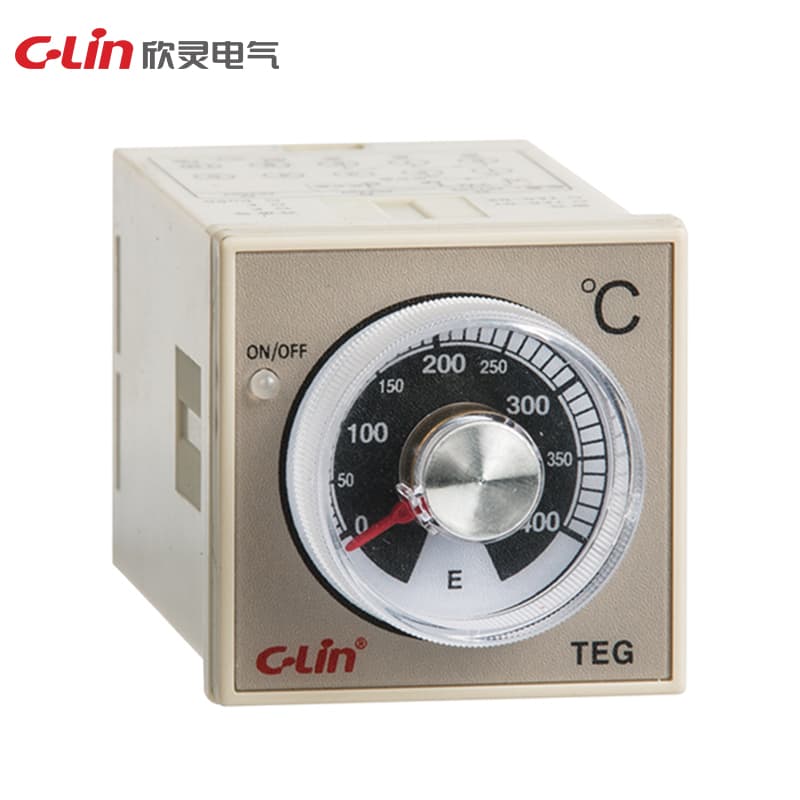

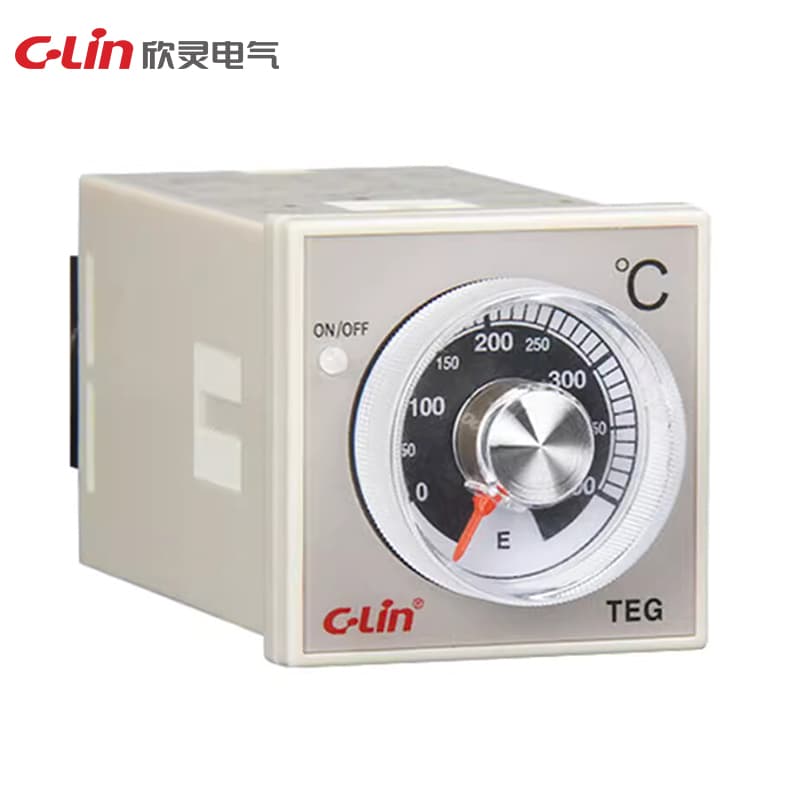

Temperature Indication Controller TEG Series

Name: Temperature Indication Controller TEG Series
Brand: C-Lin
SKU: TEG

Model Number: TEG

Input signal: Thermocouple: K, E; Thermal resistor: Cu50 Measurement error: ≤2.5 level Adjustment method: Two-position relay contact on-off control Setting method: Potentiometer setting Working power supply: AC220V (other power supplies can be customized) Dimensions: 48×48×106mm Opening size: 45×45mm Installation method: Panel type Typical applications: Plastic sealing machine, sealing machine

Request Quote

Technical Specifications

Model	TEG
Dimension	48×48×106mm
Hole size	45×45mm
Input signal	Thermocouple: K, E; thermal resistance: Cu50
Setting mode	Potentiometer setting
Supply voltage	AC220V (other power supplies customizable)
Adjustment mode	Two-position relay contact on-off control
Measurement error	≤ 2.5 class
Installation method	Panel type
Typical application	Plastic packaging machine, sealing machine
