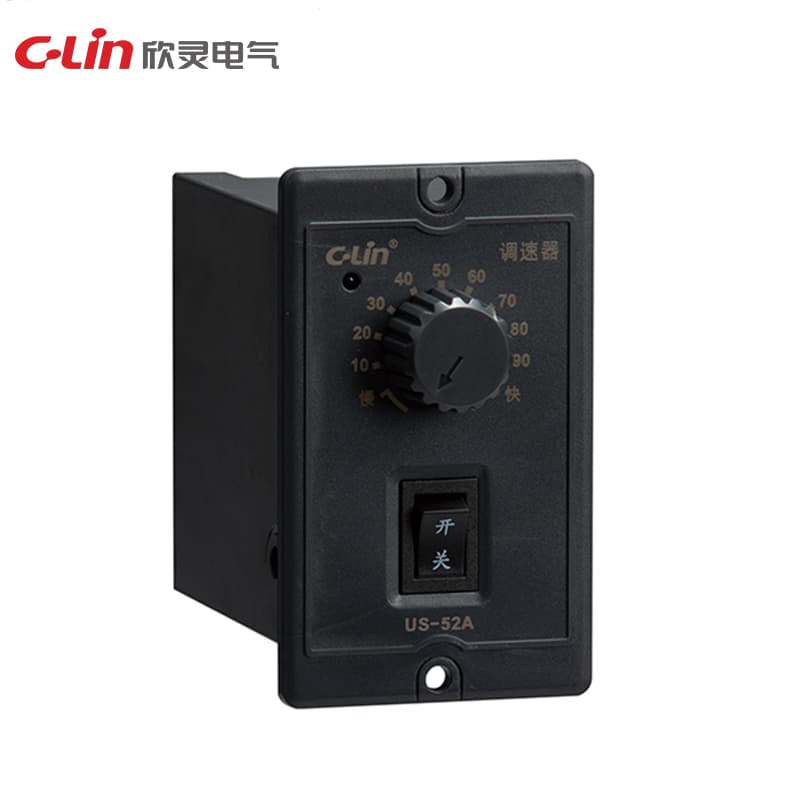

AC Motor Speed Regulator US Series

Name: AC Motor Speed Regulator US Series
Brand: C-Lin
SKU: US-52A

Model Number: US-52A

Working power supply: AC220V 50Hz Rated power: 15W, 25W, 40W, 60W, 90W, 120W, 180W, 200W, 250W Speed range: 90~1400r/min 50Hz; 90~2800r/min 60Hz Control mode: Forward/reverse selectable: COM and CW are connected for forward rotation, COM and CCW are connected for reverse rotation Applicable scope: YYPJ, YCJT, YYCJ and other series of five-wire motors with speed measuring wires Dimensions: 65×155×162mm Opening size: 82×54mm 90-2×Φ4.5mm Installation method: Panel screw installation Remarks: With soft start

Request Quote

Technical Specifications

Model	US-52A
Dimension	60×99.6×104.2mm
Hole size	81×53mm 90.5-2×Φ4.5mm
Rated power	15W, 25W, 40W, 60W, 90W 120W, 180W, 200W, 250W
Control mode	Forward/reverse optional: Connecting COM to CW for forward rotation, connecting COM to CCW for reverse
Supply voltage	AC220V 50Hz
Application scope	YYDJ, YCJT, YYCJ, YCJFK series five-wire motors with speed measuring wire
Installation method	Panel screw installation
Speed regulation range	90~1400 rpm 50Hz; 90~1600 rpm 60Hz
