Miniature Circuit Breaker XLB1 Series
C-Lin

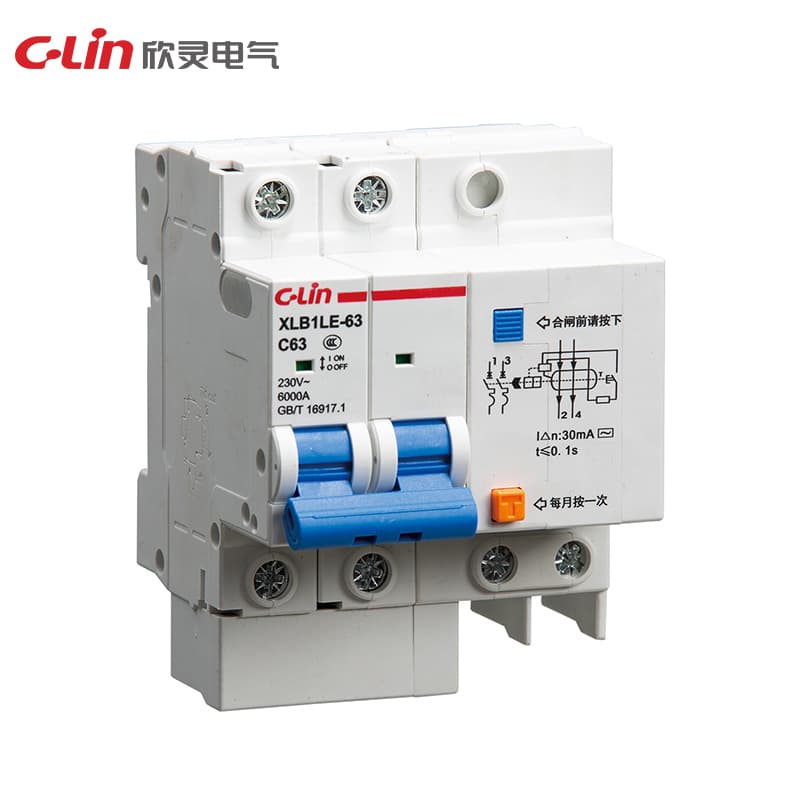

Miniature Circuit Breaker XLB1 Series

Model Number: XLB1LE-63

XLB1-63XLB1LE-63

Rated working voltage: AC230V/400V Rated frequency: 50Hz Rated working current: 1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A Number of poles: 1P, 2P, 3P, 4P Instantaneous tripping form: Type B, Type C, Type D Protection type: distribution protection, motor protection Rated short-circuit breaking capacity (Icu): 6kA Appearance and installation dimensions: See the instruction manual or selection manual Installation method: 35mm standard rail installation Product implementation standard: GB/T 109

Request Quote

Technical Specifications

Pole1P、2P、3P、4P
DimensionsFind operating instructions or selection manual
Installation35mm standard rail mounting
SpecificationXLB1-63
Rated frequency50Hz
Working VoltageAC230V/400V
Type of protectionDistribution protection, motor protection
Rated operating current1A、2A、3A、4A、6A、10A、16A、20A、25A、32A、40A、50A、63A
Instantaneous release formType B, Type C, Type D
Product implementation standardsGB/T 10963.1
Rated short-circuit breaking capacity (Icu)6kA
