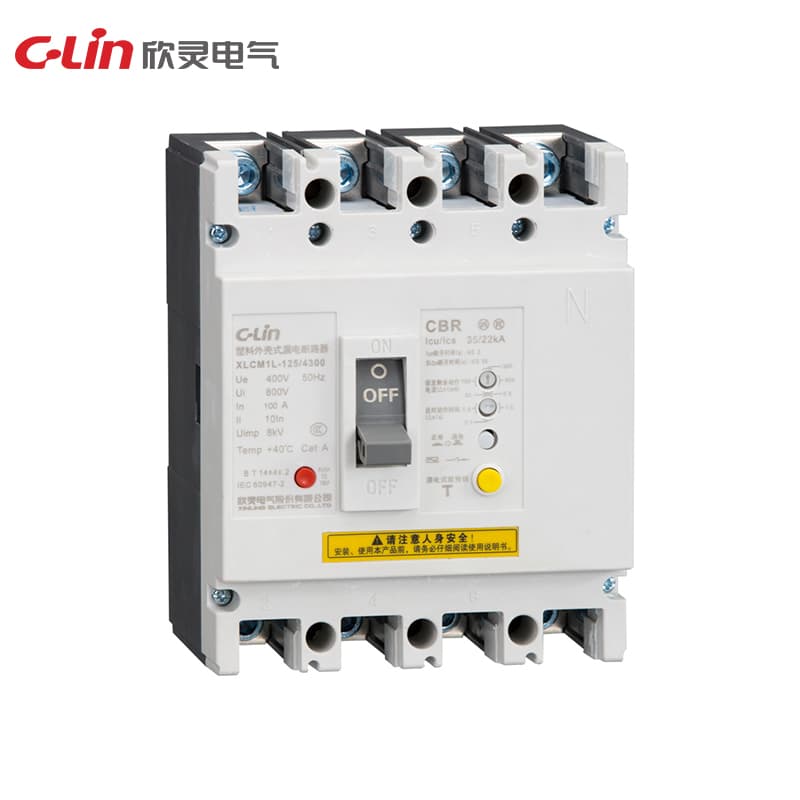

Molded Case Circuit Breaker XLCM1 Series
C-Lin

Molded Case Circuit Breaker XLCM1 Series

Model Number: XLCM1L

XLCM1XLCM1EXLCM1L

Rated working voltage: AC400V Rated insulation voltage: 690V (500V for 63 type) Frame grade: 63A, 125A, 250A, 400A, 630A, 800A Rated current: 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A, 160A, 180A, 200A, 225A, 250A, 315A, 350A, 400A, 500A, 630A, 800A Overload protection (delay): power distribution protection, motor protection Rated ultimate short-circuit breaking capacity level: L (standard type); M (higher breaking type); Installation method: vertical/horizontal Wiring method: front wiring, rear wi

Request Quote

Technical Specifications

Pole3P、4P
AltitudeNot more than 2,000 metres
InstallationVertical/Horizontal
Rated current16A、20A、25A、32A、40A、50A、63A、80A、100A、125A、160A、180A、200A、225A、250A、315A、350A、400A、500A、630A、800A
SpexificationXLCM1
Wiring MethodFront Panel Wiring, Rear Panel Wiring, Plug-In Type
Protection classIP20
Shell frame grade63A、125A、250A、400A、630A 、800A
Contamination level3
Installation categoryⅢ
Rated Working VoltageAC400V
Rated insulation voltage690V (63 500V)
Environmental temperatureUpper limit temperature: +40°C; Lower limit temperature: -5°C;
Overload protection (time delay)Distribution protection, motor protection
Rated ultimate short-circuit breaking capacity classL (standard type); M (higher breaking type);
