C-Lin

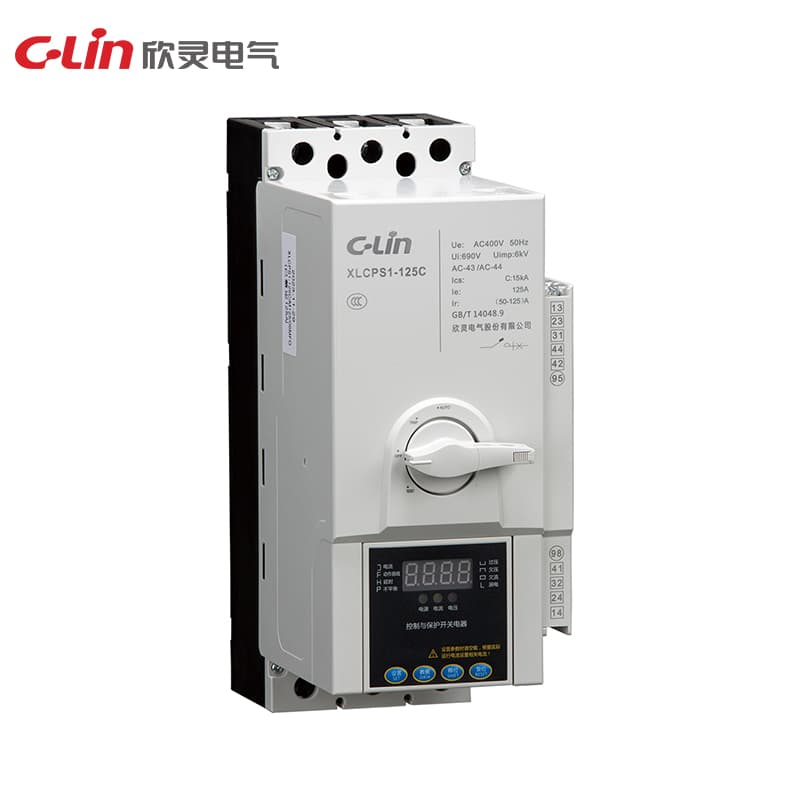

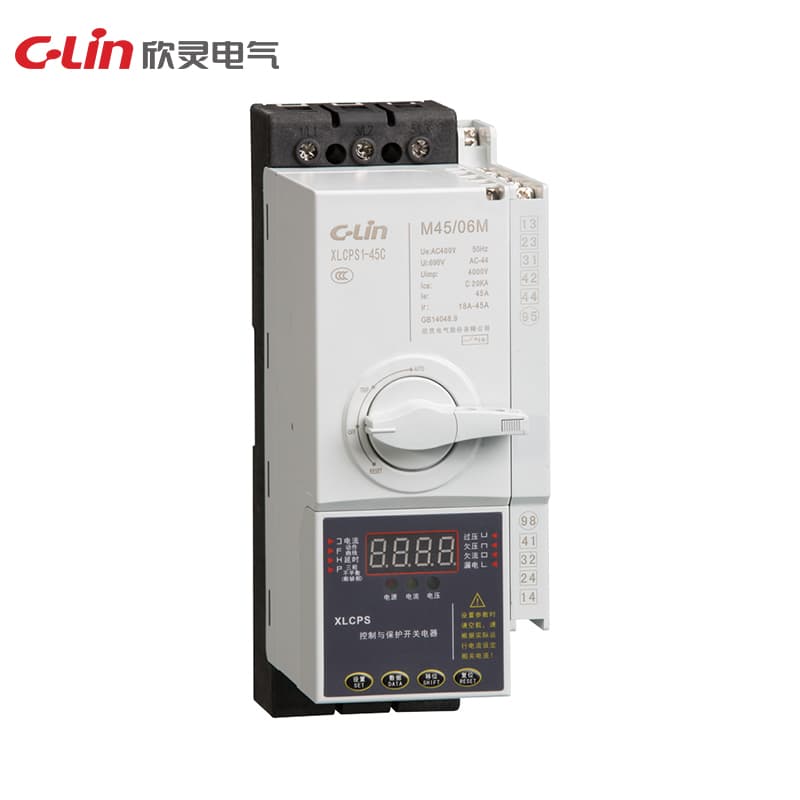

Control And Protection Switch XLCPS1 Series
Model Number: XLCPS1
Rated working voltage (Ue): 400V, 690V Control power supply voltage (Us): AC230V, AC400V Frame grade rated current (Inm): 45A, 125A Rated working current (Ie): 1A, 3A, 6A, 12A, 16A, 25A, 32A, 45A, 63A, 80A, 100A, 125A Ambient temperature: upper limit temperature: +40℃; lower limit temperature: -5℃ Installation environment: altitude not exceeding 2000 meters, no moisture, no corrosive gas. Number of poles: 3P Overload protection (delay): power distribution protection, motor protection Breaking capacity: C: 1
Request QuoteTechnical Specifications
| Polarities | 3P |
| Temperature | Upper temperature limit: +40°C; lower temperature limit: -5°C |
| Speicfication | XLCPS1 |
| Derived function | F- Fire, L- Leakage, G- Isolation, T- Communication |
| Breaking capacity | C:15KA,Y:35KA |
| Auxiliary Contacts | 06-3NO 2 NC +1 Failure release +1 Failure alarm |
| Installation environment | Altitude up to 2000 metres above sea level, no humidity, no corrosive gases |
| Rated operating current (Ie) | 1A,3A,6A,12A,16A,25A,32A,45A,63A,80A,100A,125A |
| Overload protection (time delay) | Distribution protection, motor protection |
