C-Lin

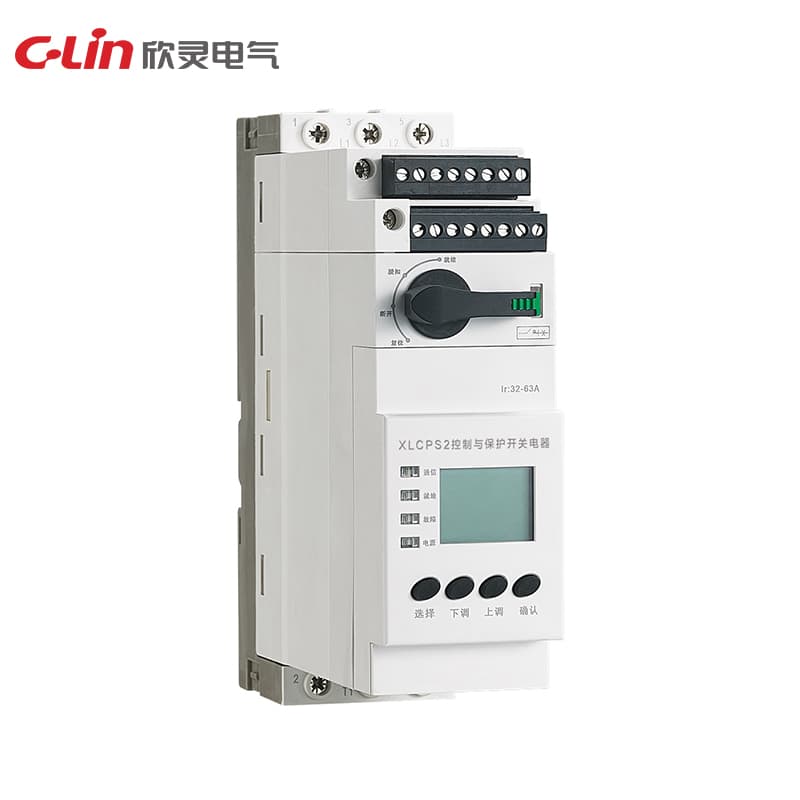

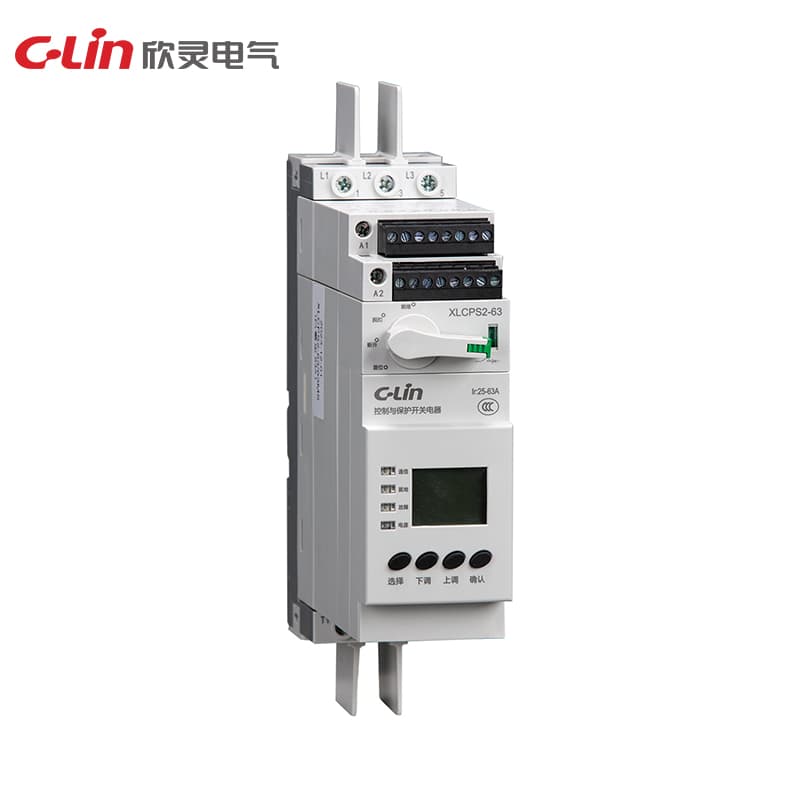

Control And Protection Switch XLCPS2 Series
Model Number: XLCPS2
Frame grade: 63 Rated working voltage (Ue): 400V, 690V Use category: AC-43, AC-44 Rated frequency: 50Hz Number of poles: 3 Rated working system: eight-hour working system, uninterrupted working system, intermittent working system Intermittent working system level 300, load factor 40% Rated operating short-circuit breaking capacity Ics: 50kA (AC400V), 4kA (AC690V) Breaking action time ≤ 2ms Rated insulation voltage Ui: 690V Rated impulse withstand voltage Uimp: 6kV Electrical life (AC-43) (10,000 times): 100
Request QuoteTechnical Specifications
| Pole | 3 |
| Installation | Vertical mounting (screw mounting) |
| Specification | XLCPS2 |
| Category of use | AC—43，AC—44 |
| Rated frequency | 50Hz |
| Shell frame grade | 63 |
| Breaking action time | ≤ 2ms |
| Rated working system | Eight-hour working day, uninterrupted working day, intermittent working day |
| Overall dimensions (mm) | 184×55×158 |
| Rated insulation voltage Ui | 690V |
| Rated operating voltage (Ue) | 400V、690V |
| Rated operating current Ie (A) | 1.2、2.4、6、12 |
| Mechanical life (10,000 cycles) | 1000 |
| Conventional heating current Ith (A) | 12 |
| Rated impulse withstand voltage Uimp | 6kV |
| Electrical life (AC-43) (10,000 cycles) | 100（AC400V） |
| Rated operating short-circuit breaking capacity Ics | 50kA（AC400V）， 4kA（AC690V） |
