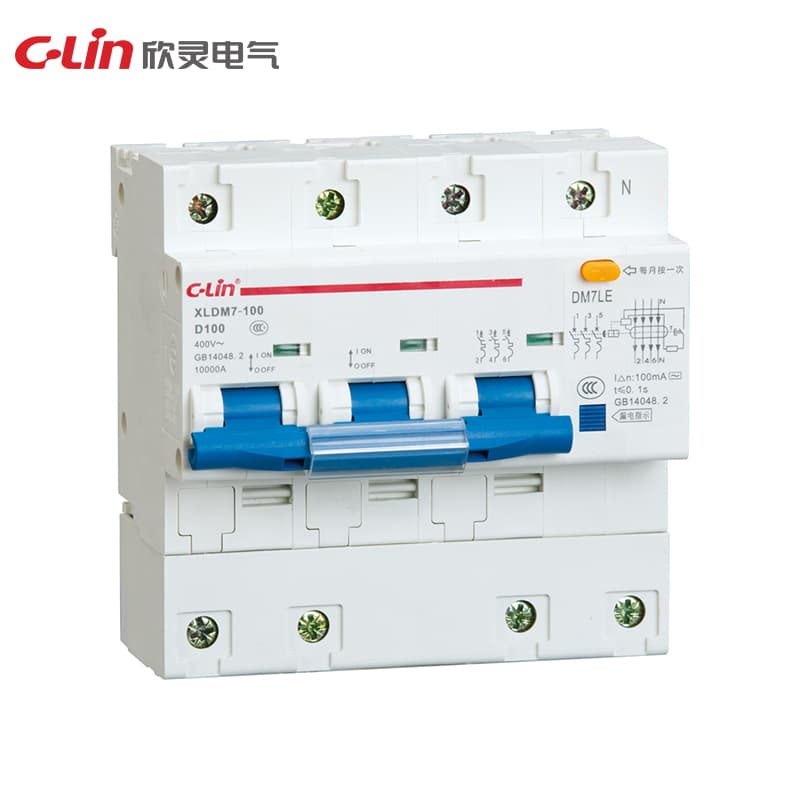

Miniature Circuit Breaker XLDM7 Series
C-Lin

Miniature Circuit Breaker XLDM7 Series

Model Number: XLDM7LE-100

XLDM7-100XLDM7LE-100

Rated working voltage: AC230V/400V Rated frequency: 50Hz Rated working current: 63A, 80A, 100A Number of poles: 1P+N, 2P, 3P, 3P+N, 4P Rated leakage operating current (I△n): 30mA, 50mA, 100mA Protection type: distribution protection, motor protection Rated short-circuit breaking capacity (Icu): 10kA Appearance and installation dimensions: See the instruction manual or selection manual Installation method: 35mm standard rail installation Product implementation standard: GB/T14048.2

Request Quote

Technical Specifications

Pole1P+N、2P、3P、3P+N、4P
DimensionsFind operating instructions or selection manual
Installation35mm standard rail mounting
SpecificationXLDM7LE-100
Rated frequency50Hz
Working VoltageAC230V/400V
Type of protectionDistribution protection, motor protection
Rated operating current63A、80A、100A
Product implementation standardsGB/T14048.2
Rated short-circuit breaking capacity (Icu)10kA
