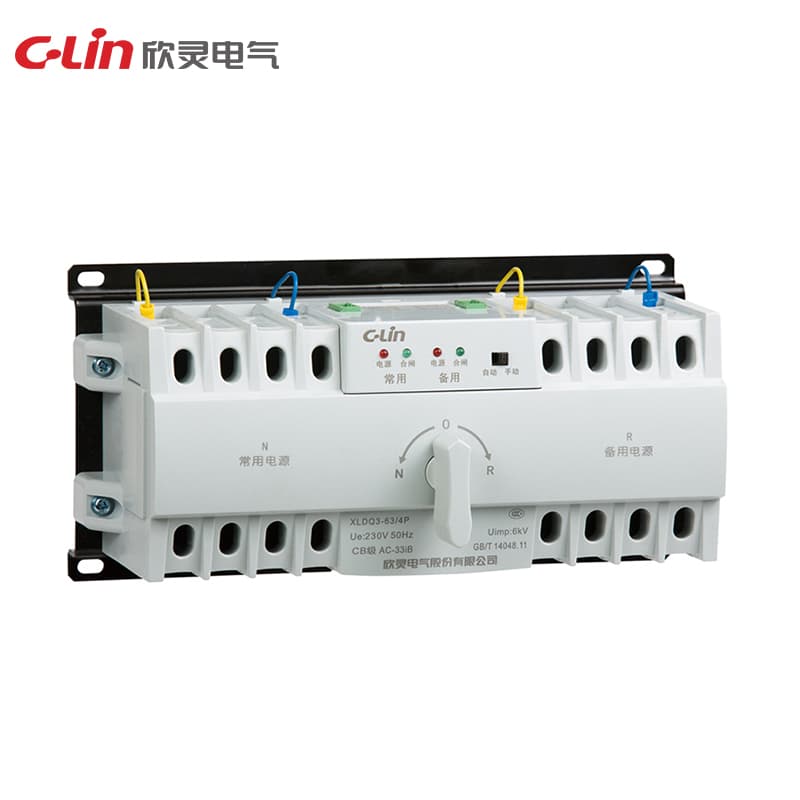

Dual power Automatic Transfer Switch XLDQ3 Series

Name: Dual power Automatic Transfer Switch XLDQ3 Series
Brand: C-Lin
SKU: XLDQ3

Model Number: XLDQ3

Rated working voltage: AC400V Rated working current: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A Number of poles: 3P/4P Controller model: A/B/C Working mode: automatic/manual Conversion method: automatic resetting Dimensions Length × width × height (mm): 248 × 125 × 125mm (three-pole and four-pole dimensions are the same) Installation (opening) dimensions Length × width (mm): 229 × 113mm (three-pole and four-pole dimensions are the same) Installation method: vertical

Request Quote

Technical Specifications

Series	XLDQ3 series
No. of poles	3P/4P
Operation mode	Auto/manual
Conversion mode	Auto-transfer and auto-restoring /auto-transfer and nonauto-restoring
Controller model	A/B/C
Installation method	Vertical
Rated operating current	6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
Rated operating voltage	AC400V
Dimension length×width×height (mm)	248×125×125mm (same size for 3P and 4P)
Mounting (hole) size length×width (mm)	229×113mm (same size for 3P and 4P)
