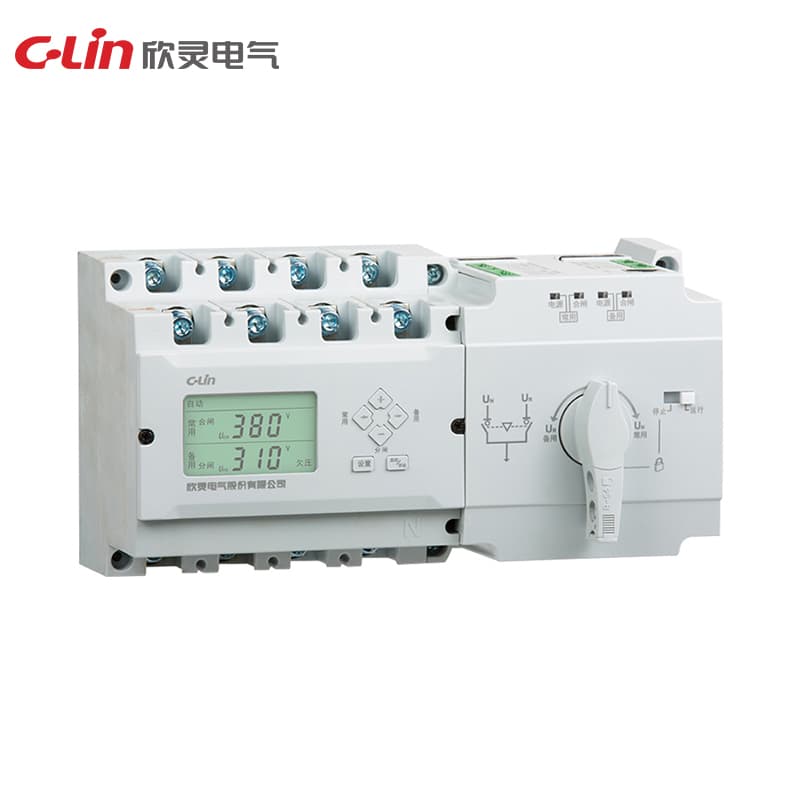

Dual power Automatic Transfer Switch XLDS3 Series
Model Number: XLDS3
Number of poles: 3/4 Controller model: B/C/D/E Rated working voltage (V) Ue: 400 Rated insulation voltage (V) Ui: 690 Rated impulse withstand voltage (kV) Uimp: 8 Use category: AC-33B Rated limiting short-circuit current (kA) lq: 120kA Rated control power supply voltage (V) Us: 230V/50Hz
Request QuoteTechnical Specifications
| Weight (kg) | 2.5 |
| No. of poles | 3P 4P |
| Controller model | B/C/D/E |
| Installation method | Vertical |
| Utilization category | AC-33B |
| Model and specification | XLDS3-80 |
| Contact transfer time (s) | 0.6 |
| Rated operating current (A)Ie | 16-80 |
| Rated operating voltage (V)Ue | 400 |
| Rated insulation voltage (V)Ui | 690 |
| Number of operation cycles (total) | 10000 |
| Rated control supply voltage (V)Us | 230V/50Hz |
| Dimension(mm) length×width×height | 229×115×129 |
| Installation size (mm) length×width | 212×100 |
| Number of operation cycles (power-on) | 1500 |
| Number of operation cycles (power-off) | 8500 |
| Rated impulse withstand voltage (kV)Uimp | 8 |
| Rated limiting short-circuit current (kA)Iq | 120kA |
| Rated short-circuit making capacity (kApeak)Icm | 15kA |
| Rated short-time withstand current (kA, rms)Icw | 10kA(30mS) |
