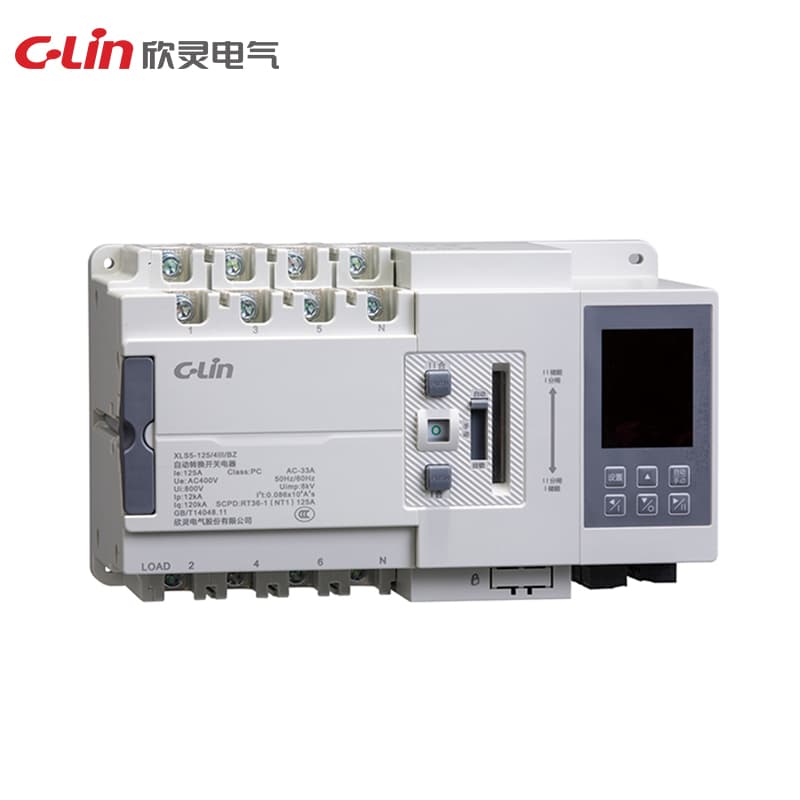

Dual power Automatic Transfer Switch XLDS5 Series
Model Number: XLDS5
Model specification: XLDS5-125, XLDS5-250, XLDS5-400, XLDS5-630 Number of poles: 2, 3, 4; 3, 4 Rated working current: 16, 20, 25, 32, 40, 63, 80, 100, 125; 125, 160, 200, 225, 250; 315, 350, 400; 500, 630 Use category: AC-33A, AC-33iA Rated working voltage: 2P: AC220/230V, 3P/4P: AC400V/415V Rated insulation voltage: 800V Rated working frequency: 50/60Hz Rated impulse withstand voltage: 8kV Rated limiting short-circuit current: 12kV Rated control power supply: AC230V Contact conversion time: ≤ 50ms Number o
Request QuoteTechnical Specifications
| No. of poles | 2P, 3P, 4P |
| Utilization category | AG-33A, AC-33iA, AG-33B |
| Model and specification | XLDS5-125 |
| Rated working frequency Hz | 50/60Hz |
| Rated operating current Ie(A) | 16, 20, 25, 32, 40, 63, 80, 100, 125 |
| Rated operating voltage Ue(V) | AC400V/415V |
| Rated insulation voltage Ui(V) | 800 |
| Rated control power supply Us(V) | AC230V |
| Number of operation cycles (total) | 16000 |
| Dimension(mm) length×width×height | 238X140X115 |
| Minimum transfer operation time (mS) | ≤ 70 |
| Number of operation cycles (power-on) | 6000 |
| Number of operation cycles (power-off) | 10000 |
| Number of working positions of contact | II or III |
| Rated impulse withstand voltage Uimp(kW) | 8 |
| Rated limiting short-circuit current Iq(kA) (fuse) | 120 |
