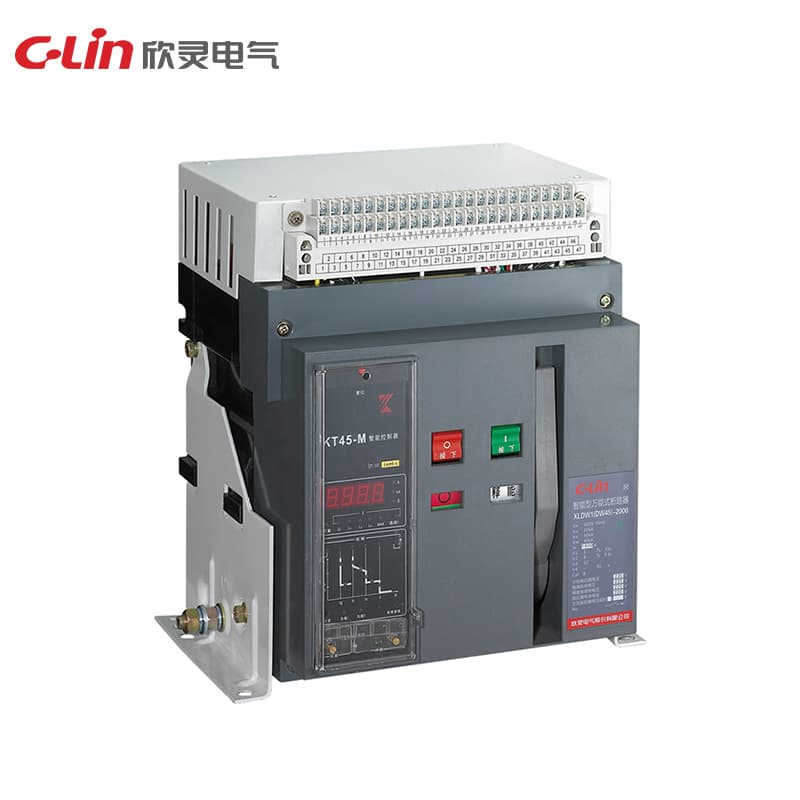

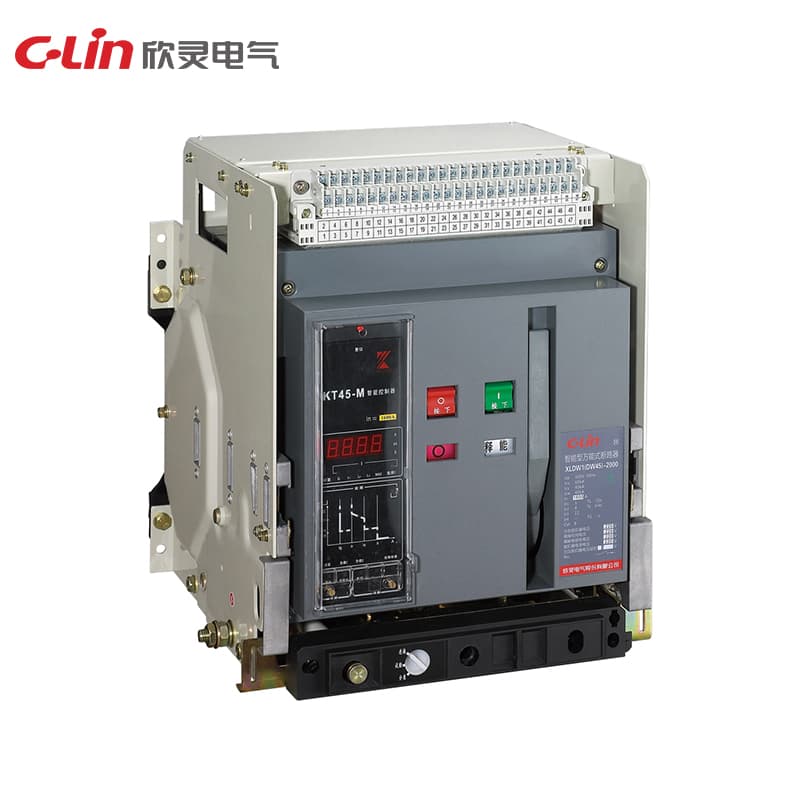

Intelligent Air Circuit Breaker XLDW1 Series
Model Number: XLDW1
Rated insulation voltage (Ui): AC690V Rated working voltage (Ue): AC400V 50Hz Frame grade current (Inm): 2000A, 3200A, 4000A Rated current (Ie): 400A, 630A, 800A, 1250A, 1600A, 2000A, 2500A, 2900A, 3200A, 3600A, 4000A Rated operating short-circuit breaking capacity (Ius): 40kA~65kA Ambient temperature: upper limit temperature: +40℃; lower limit temperature: -5℃ Number of poles: 3P, 4P (4000A only 3P) Structural form: drawer type, fixed type Classification by controller: L type, M type, H type, 2M type, 2H t
Request QuoteTechnical Specifications
| Pole | 3P, 4P (4000A only 3P) |
| By Controller | Type L, Type M, Type H, Type 2M, Type 2H |
| Specification | XLDW1（DW45） |
| Structural form | Stationary |
| Rated current (Ie) | 400A、630A、800A、1250A、1600A、2000A、2500A、2900A、3200A 、3600A、4000A |
| Contamination level | 3 |
| Environmental temperature | Upper temperature limit: + 40°C; Lower temperature limit: -5°C |
| Rated operating voltage (Ue) | AC400V 50Hz |
| Rated insulation voltage (Ui) | 690V |
| Shell frame rating current (Inm) | 2000A、3200A、4000A |
| Rated operating short-circuit breaking capacity (Ius) | 40kA~65kA |
