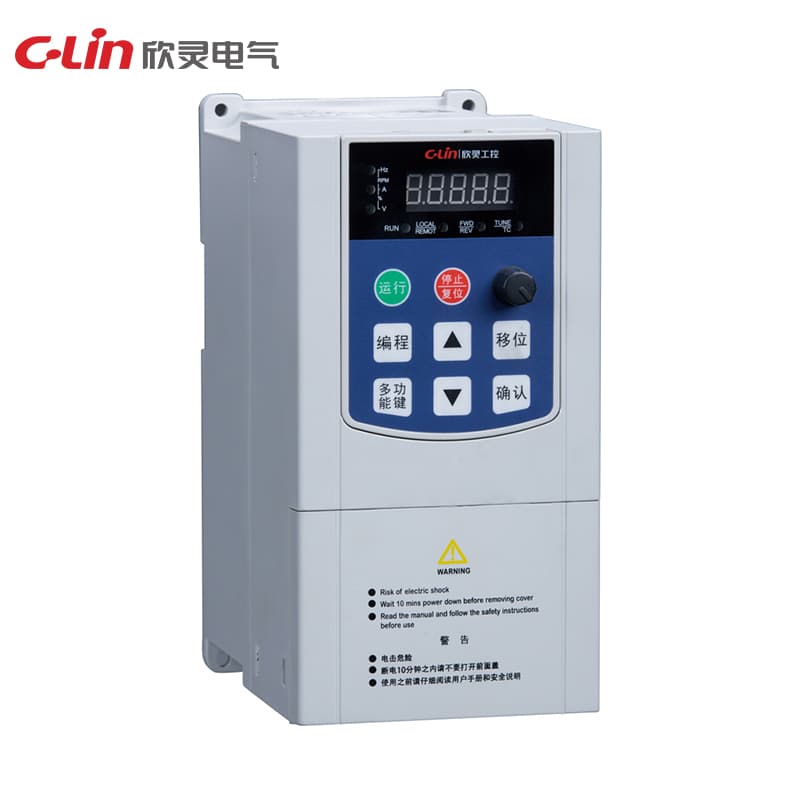

Universal Inverter XLP530 Series
C-Lin

Universal Inverter XLP530 Series

Model Number: XLP530-G5.5

XLP530-G2.2XLP530-G5.5XLP530-M1.5XLP530-M2.2

Input voltage: 3PH AC380V 50/60Hz Output voltage: 3PH AC0-380V 0-500Hz Rated power: 0.75kW 1.5kW 2.2kW Rated current: 2.1A 3.8A 5.1A Control mode: V/F control, vector control Overload capacity: 150% rated current 60s; 190% rated current 1.5s Protection function: overvoltage, overcurrent, undervoltage, overheating, short circuit Protection level: IP20 Dimensions: 170.2×84.6×138.1mm Installation dimensions: 67.3×157.5 and 35mm rail installation Cooling method: forced air cooling Place of use: Altitude ≤1000 m

Request Quote

Technical Specifications

Rating0.75kW 1.5kW 2.2kW
Control ModeV/F control, vector control
Input Voltage1PH / 3PH AC380V 50/60Hz
Rated current2.1A 3.8A 5.1A
Output Voltage1PN / 3PH AC0-380V 0-500Hz
SpeicificationXLP530 Series
Protection classIP20
Overload capacity150 per cent of rated current 60s; 190 per cent of rated current 1.5s
Protective functionOver-voltage, over-current, under-voltage, overheat, short circuit
