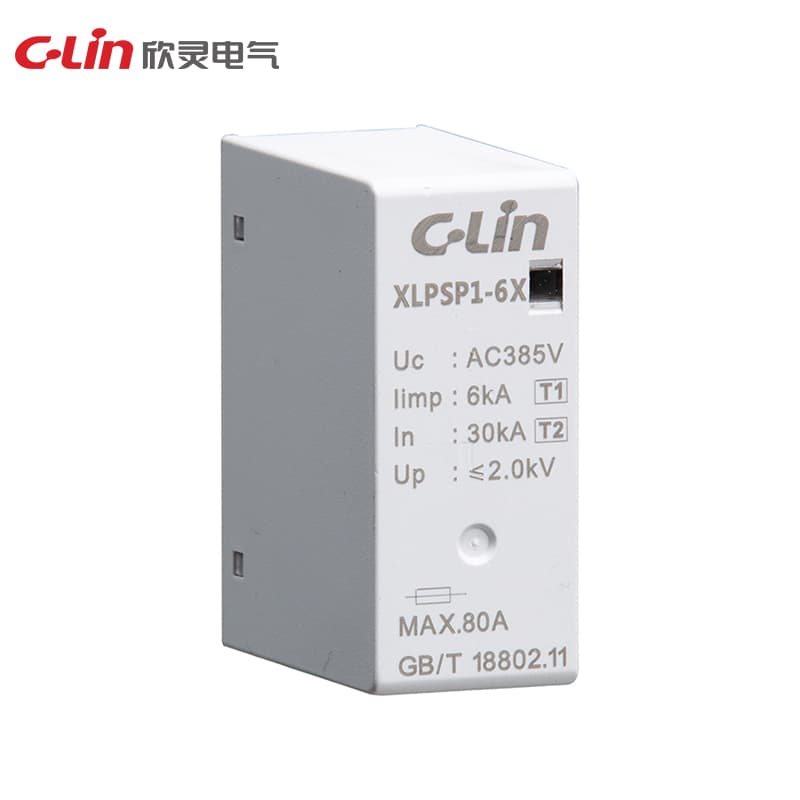

Onboard Surge Protective Device XLPSP Series

Name: Onboard Surge Protective Device XLPSP Series
Brand: C-Lin
SKU: XLPSP

Model Number: XLPSP

Rated working voltage (Un) 230V/400V Nominal discharge current In (8/20μs) 10kA/30kA Impact current Iimp (10/350μs) 6kA/20kA Maximum continuous working voltage (Uc) 275V, 385V, 385, 510, 680, DC500, DC670, DC900

Request Quote

Technical Specifications

Installation	PCB
Response time	≤25ns
Speicification	XLPSP1
Dimensions (mm)	42.5×18×33.5
Test classification	Ⅰ级、Ⅱ级
Protection level (Up) kV	≤ 2.0
Leakage current (75% Uc1mA)	–
Rated operating voltage (Un)	230V/400V
Inrush current Iimp(10/350μs)	6kA
Nominal discharge current In (8/20μs)	30kA
Maximum continuous operating voltage (Uc)	275V、385V
