Technical Specifications
| Location | Altitude ≤ 2000 metres, more than the height of the need to reduce the use of indoor non-corrosive gases, liquids, etc |
| Rating Power | 250kW,280kW,320kW |
| Shutdown mode | Soft parking, free parking |
| Working Power | AC380V±10% 50/60Hz |
| Cooling method | Natural air-cooled |
| Rating current | 500A,560A,630A |

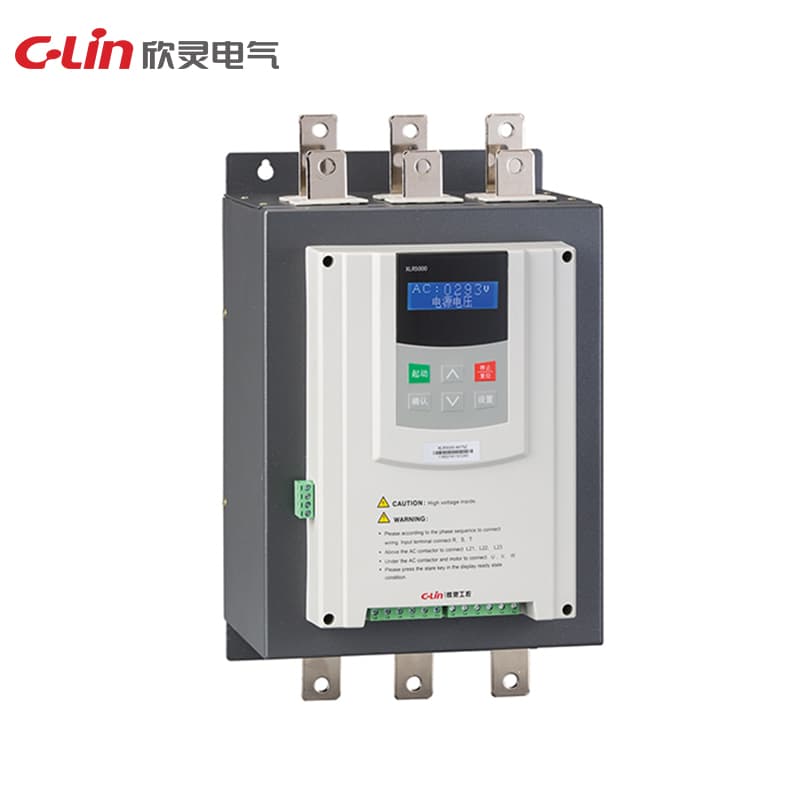

| Speicification | XLR5000 Series |
| Starting method | Current Limit, Voltage Ramp, Surge + Current Limit, Surge + Voltage, Current Ramp, Dual Closed Loop, and Monitor seven modes |
| Protection class | IP20 |
| Overload capacity | Time release according to IEC60947-4-2 standard |
| Starting frequency | The exact number of times depends on the load |
