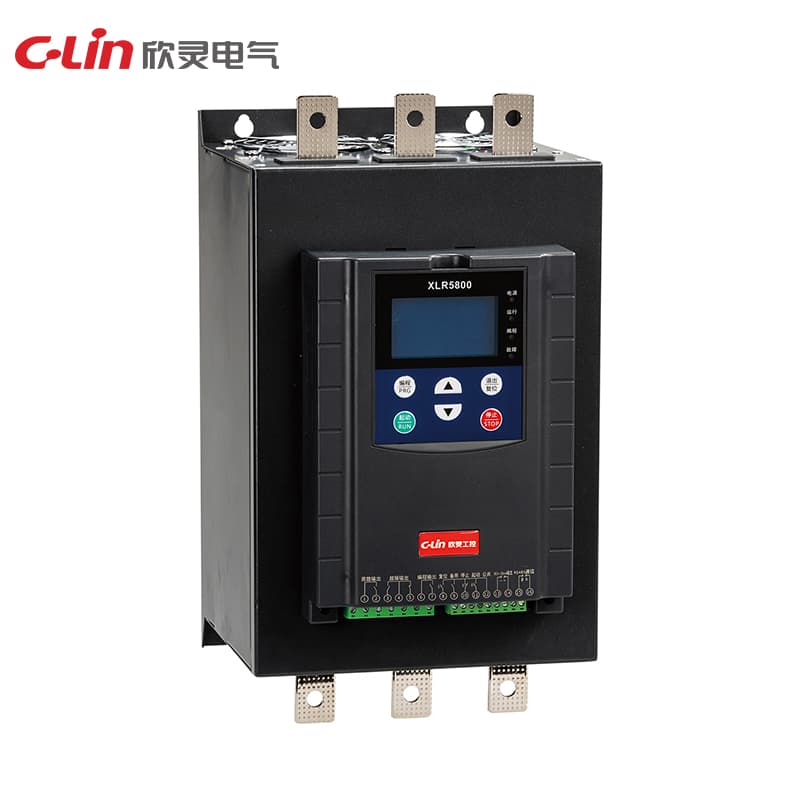

Online Soft Starter XLR5800 Series

Model Number: XLR5800-90

Input voltage: 3PH AC380V (-10%, +15%), 50Hz Rated power: 5.5kW, 7.5kW, 11kW, 15kW, 18.5kW, 22kW, 30kW, 37kW, 45kW, Rated current: 11A, 15A, 23A, 30A, 37A, 45A, 60A, 75A, 90A Starting mode: current limit, voltage ramp, inching, voltage ramp + sudden jump, voltage ramp + current limit Stop mode: soft stop, free stop Overload capacity: according to IEC60947-4-2 Standard time tripping Protection functions: overcurrent, overheating, overvoltage, undervoltage, phase loss, short circuit and other protection funct
