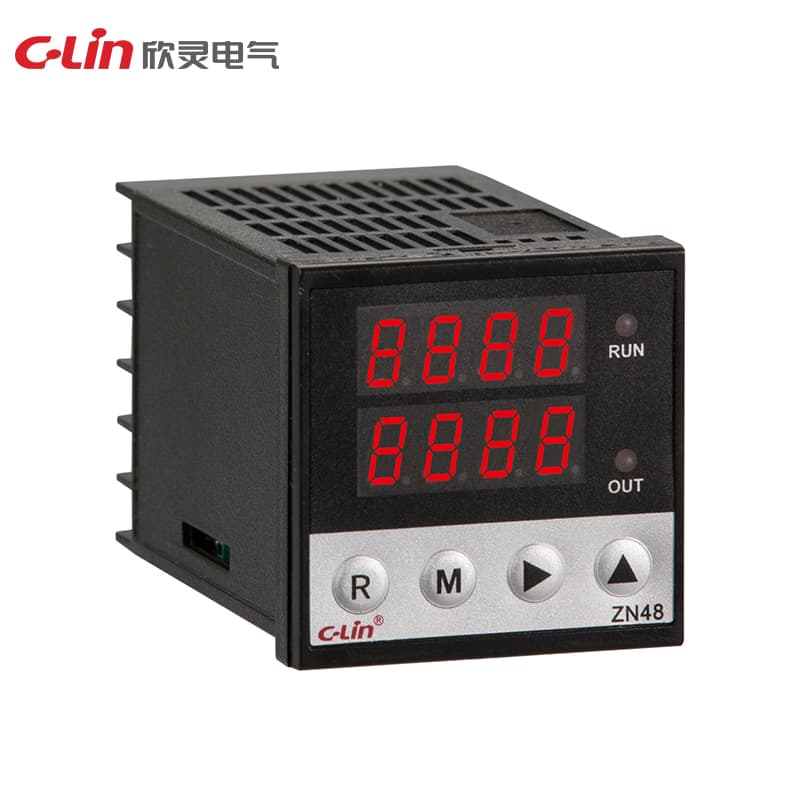

Counting And Measuring Relay ZN48 Series
Model Number: ZN48
ZN48ZN72
Working power supply: AC / DC24V; AC220V; AC/DC100~240V; AC380V Function description: It can be used as a time relay, accumulator, tachometer, frequency meter, etc., a total of 16 functions, with a total of 9 delay ranges Power failure memory: 10 years Contact form: a set of normally open and normally closed contacts Contact capacity: 3A AC250V (resistive) Dimensions: 48×48×77.5mm Opening size: 45×45mm Installation method: panel type
Request QuoteTechnical Specifications
| Ui | 400V |
| Ith | 5A |
| Uimp | 2.5KV |
| Ue/Ui | Rated working voltage Ue/rated working current Ie:AC-15 Ue:AC250V,Ie:3A for each category of use. |
| Dimensions | 48×48×77.5mm |
| Installation | panel mounted |
| Specification | ZN48 |
| Operating Mode | Can be used as a time relay, totaliser, tachometer, frequency meter, etc. A total of 16 functions, a total of 9 delay ranges |
| Operating power | AC / DC2 4V ; AC220V ; AC/DC100~240V;AC380V |
| blackout memory | 10 years |
| Contact capacity | 3A AC250V (resistive) |
| Temperature range | -5°-40°C |
| Number of contacts | One set of normally open and normally closed contacts |
| Opening dimensions | 45×45mm |
