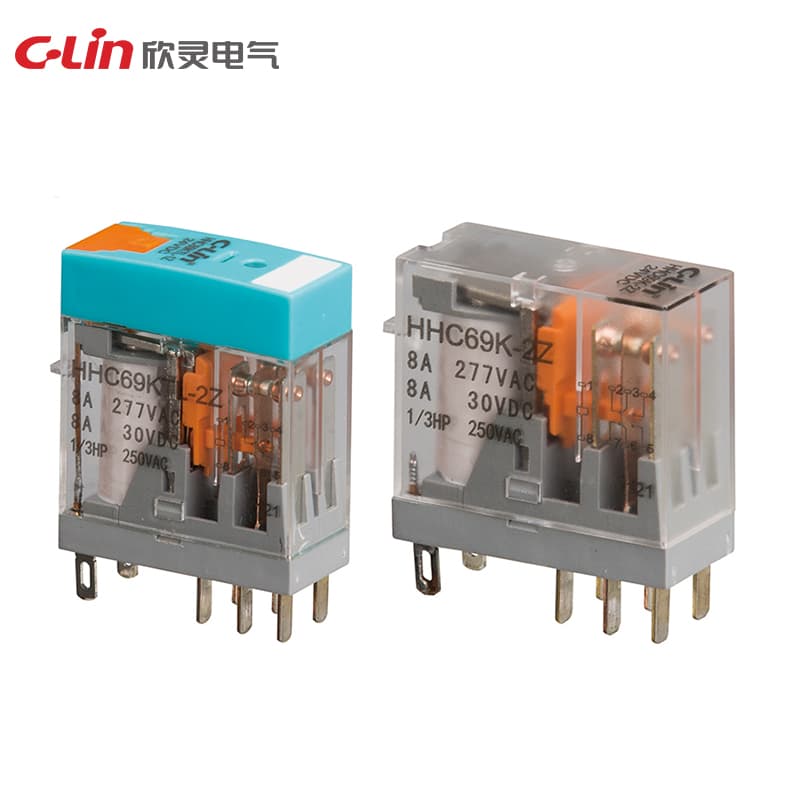

Miniature Electromagnetic Relay HHC69K Series

Name: Miniature Electromagnetic Relay HHC69K Series
Brand: C-Lin
SKU: HHC69K-2Z

Model Number: HHC69K-2Z

HHC69K-2ZHHC69KP-1Z HHC69KP-2Z HHC69KTL-1Z

Contact type: 2H, 2D, 2Z Contact load: 8A/240VAC 28VDC Coil power: DC: 0.53W; AC: 1.0VA Coil specifications: DC: 5V-110V; AC: 6V-220V Dimensions: Standard type: 34×12.7×28.8mm Low profile: 27×12.7×28.8mm

Request Quote

Technical Specifications

Model	HHC69K-2Z
Coil power	DC: 0.53W, AC: 0.8-1.0VA
Coil voltage	DC5V-110V, AC6V-220V
Contact form	1Z: 1 set NO/NC switching, 2Z: 2 sets NO/NC switching
Contact load	8A/240VAC 28VDC
Contact material	Silver alloy
Contact resistance	≤100mΩ
Insulation resistance	≥100MΩ(500VDC)
