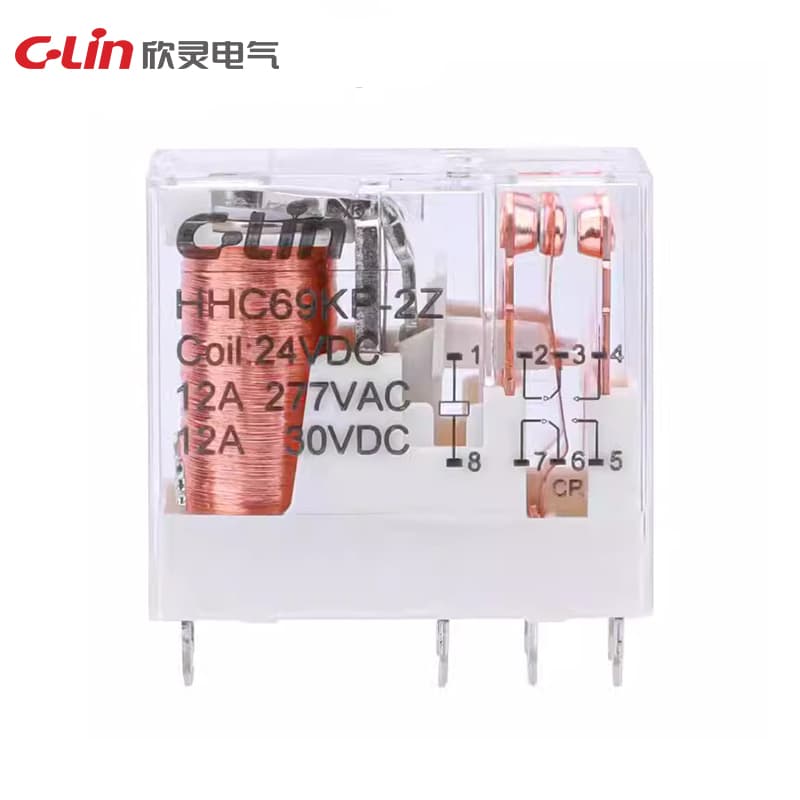

Miniature Electromagnetic Relay HHC69K Series
C-Lin

Miniature Electromagnetic Relay HHC69K Series

Model Number: HHC69KP-2Z

HHC69K-2ZHHC69KP-1ZHHC69KP-2ZHHC69KTL-1Z

Contact type: 2H, 2D, 2Z Contact load: 8A/240VAC 28VDC Coil power: DC: 0.53W; AC: 1.0VA Coil specifications: DC: 5V-110V; AC: 6V-220V Dimensions: Standard type: 34×12.7×28.8mm Low profile: 27×12.7×28.8mm

Request Quote

Technical Specifications

ModelHHC69KP-2Z
Coil powerDC: 0.53W, AC: 0.8-1.0VA
Coil voltageDC5V-110V, AC6V-220V
Contact form1Z: 1 set NO/NC switching, 2Z: 2 sets NO/NC switching
Contact load8A/240VAC 28VDC
Contact materialSilver alloy
Contact resistance≤100mΩ
Insulation resistance≥100MΩ(500VDC)
