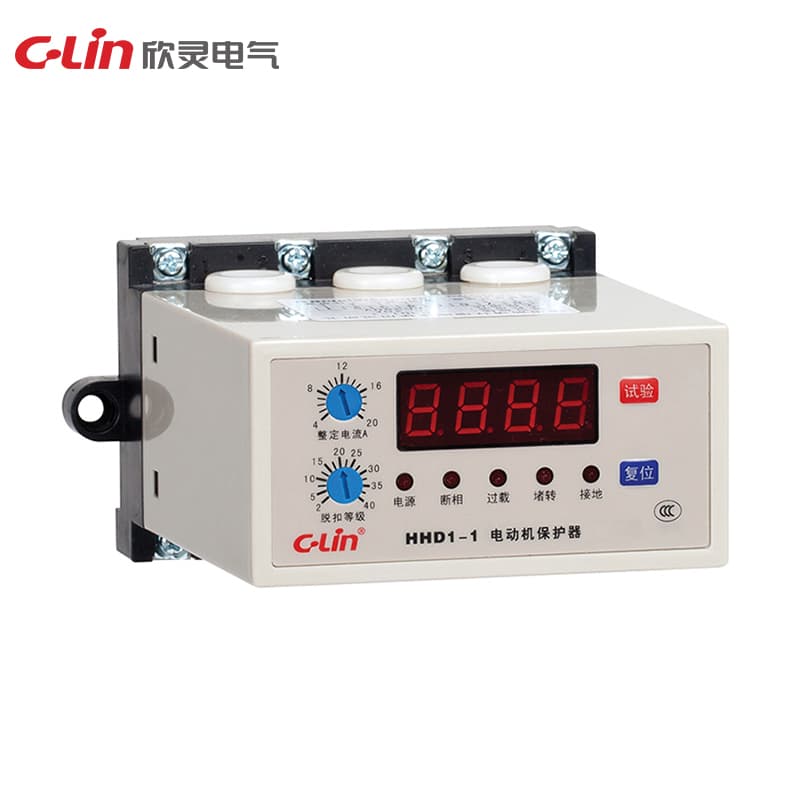

Motor Protector HHD1 Series

Name: Motor Protector HHD1 Series
Brand: C-Lin
SKU: HHD1-1A

Model Number: HHD1-1A

Working power supply: AC220V, AC380V 50Hz Current range: -1A:1~5A -1:4~20A -1B:16~80A Protection function: phase failure, three-phase imbalance, overload, stall, start-up avoidance Display mode: LED digital tube displays the maximum phase current and memory fault status Display accuracy: 2.0 level Setting mode: static quantitative setting of potentiometer Reset mode: panel reset or power-off reset Trip level: 2, 5…40 continuously adjustable Contact form: a group of normally open and normally closed conversi

Request Quote

Technical Specifications

Model	HHD1-1A

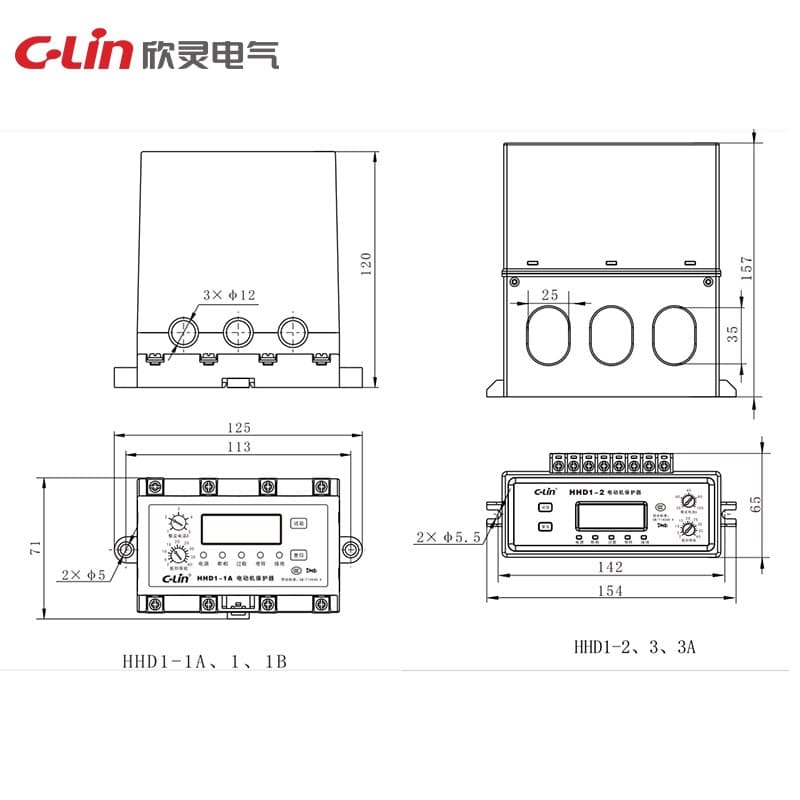

Dimension	125×71×120mm
Reset mode	Panel reset or power-off reset
Contact form	1 set of NO and NC transfer contacts
Display mode	LED displays max. phase current and memory fault status
Setting mode	Static quantization setting of potentiometer
Current range	1~5A
Release level	2, 5……40 continuously adjustable
Supply voltage	AC220V, AC380V 50Hz
Contact capacity	3A AC380V(resistive)
Display accuracy	Class 2.0
Installation method	Compatible with both installation and DIN rail type
Protection function	Phase failure, three-phase imbalance, overload locked rotor, startup avoidance
