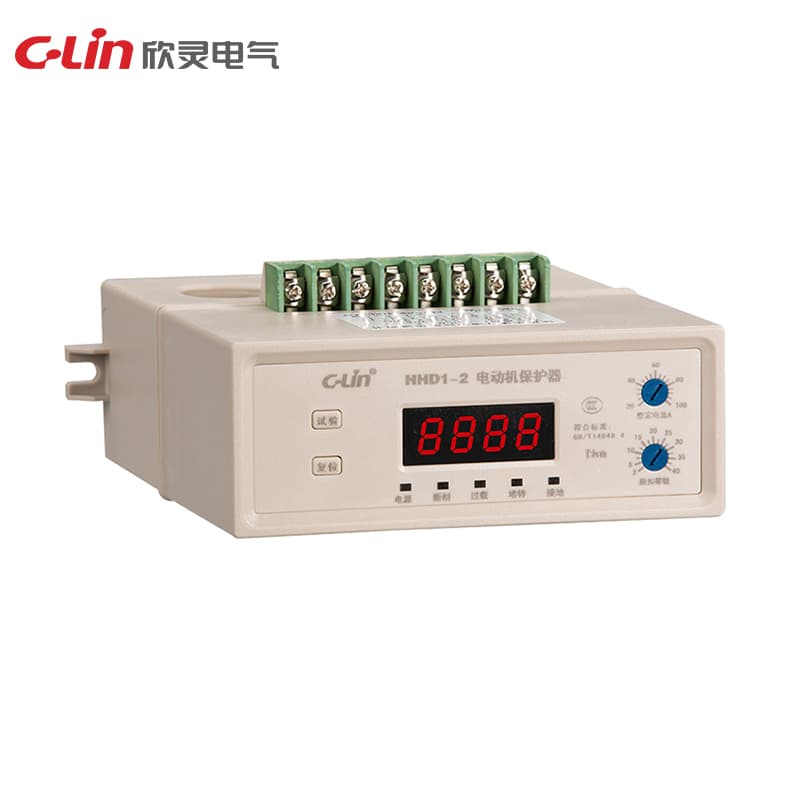

Motor Protector HHD1 Series
Model Number: HHD1-2
HHD1-1AHHD1-2
Working power supply: AC220V, AC380V 50Hz Current range: -1A:1~5A -1:4~20A -1B:16~80A Protection function: phase failure, three-phase imbalance, overload, stall, start-up avoidance Display mode: LED digital tube displays the maximum phase current and memory fault status Display accuracy: 2.0 level Setting mode: static quantitative setting of potentiometer Reset mode: panel reset or power-off reset Trip level: 2, 5…40 continuously adjustable Contact form: a group of normally open and normally closed conversi
Request QuoteTechnical Specifications
| Model | HHD1-2 |

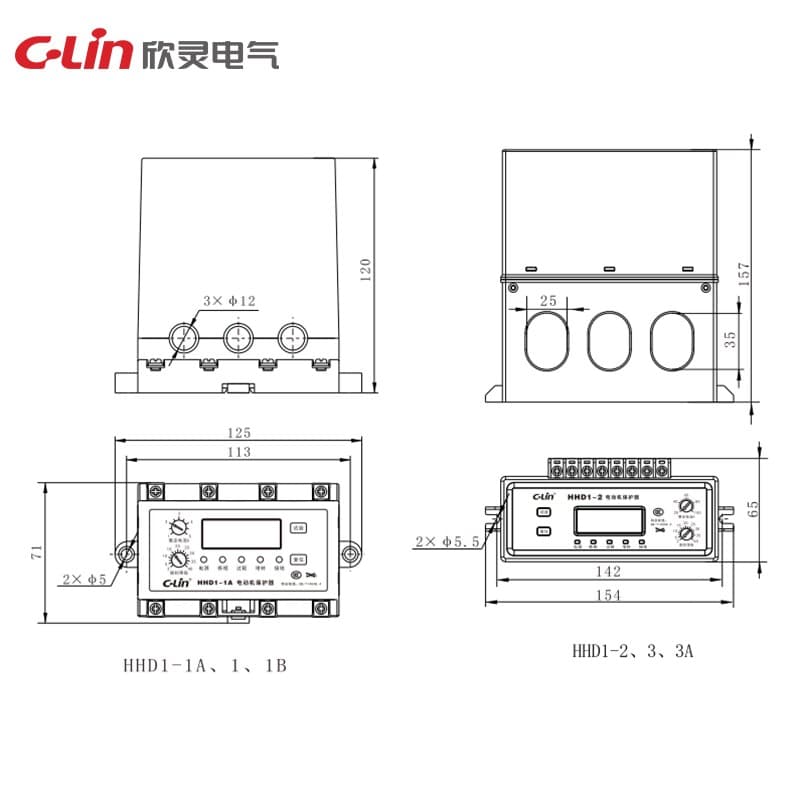

| Dimension | 125×71×120mm |
| Reset mode | Panel reset or power-off reset |
| Contact form | 1 set of NO and NC transfer contacts |
| Display mode | LED displays max. phase current and memory fault status |
| Setting mode | Static quantization setting of potentiometer |
| Current range | 1~5A |
| Release level | 2, 5……40 continuously adjustable |
| Supply voltage | AC220V, AC380V 50Hz |
| Contact capacity | 3A AC380V(resistive) |
| Display accuracy | Class 2.0 |
| Installation method | Compatible with both installation and DIN rail type |
| Protection function | Phase failure, three-phase imbalance, overload locked rotor, startup avoidance |
