C-Lin
Solid-State Relay HHG41 Series

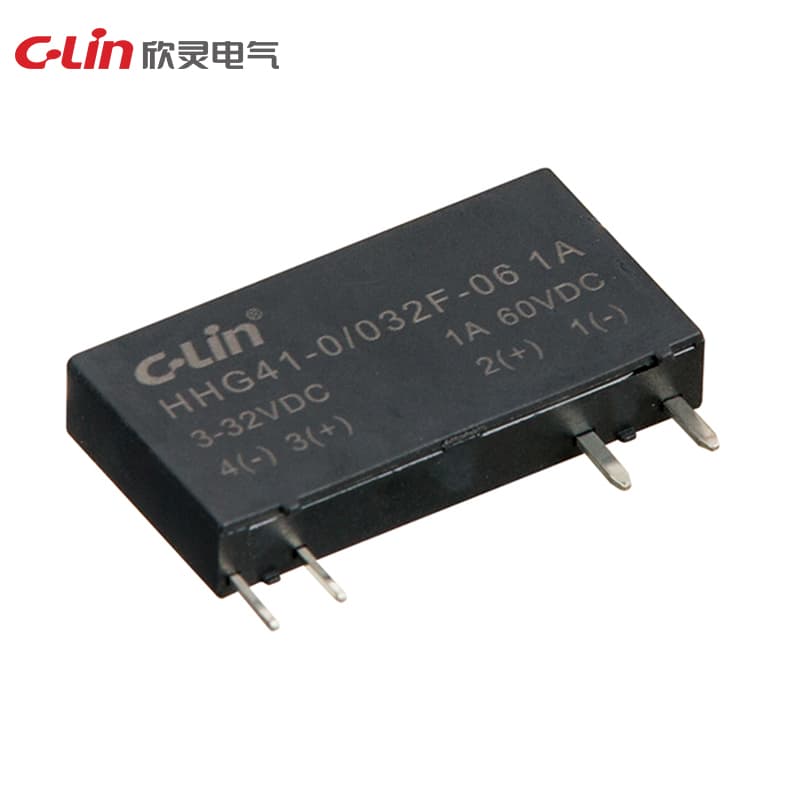

Model Number: HHG41-0/032F-06
HHG41-0/032F-06HHG41-0/032F-06-D
Control voltage: 3-32VDC Control current: 5-20mA Load voltage: 06: 5-60VDC Load current: 1A, 2A On-state voltage drop: DC≤1.2VAC Control protection: DC≤5ms Off-state leakage current: DC≤5ms Dielectric withstand voltage: ≥ 1500VAC Ambient temperature: -30~80℃ Dimensions: 28×18.5×5mm Installation form: single in-line plug-in Description: Install next to a heat dissipation window with good ventilation Note: Adapter socket 41F-1Z-C2N 5V
Request QuoteTechnical Specifications
| Model | HHG41-0/032F-06 |
| Dimension | 28×18.5×5mm |
| Instruction | Installed next to well ventilated heat dissipation window |
| On-off time | AC≤ 5ms |
| Load current | 1A, 2A |
| Load voltage | 06: 5-60VDC |
| Ambient temp. | -30~80°C |
| Control current | 5-20mA |
| Control voltage | 3-32VDC |
| Installation form | Single line direct plug-in |
| Dielectric strength | ≥ 1500VAC |
| On-state voltage drop | AC ≤ 1.2VAC |
| Off-state leakage current | AC ≤ 5mA |
