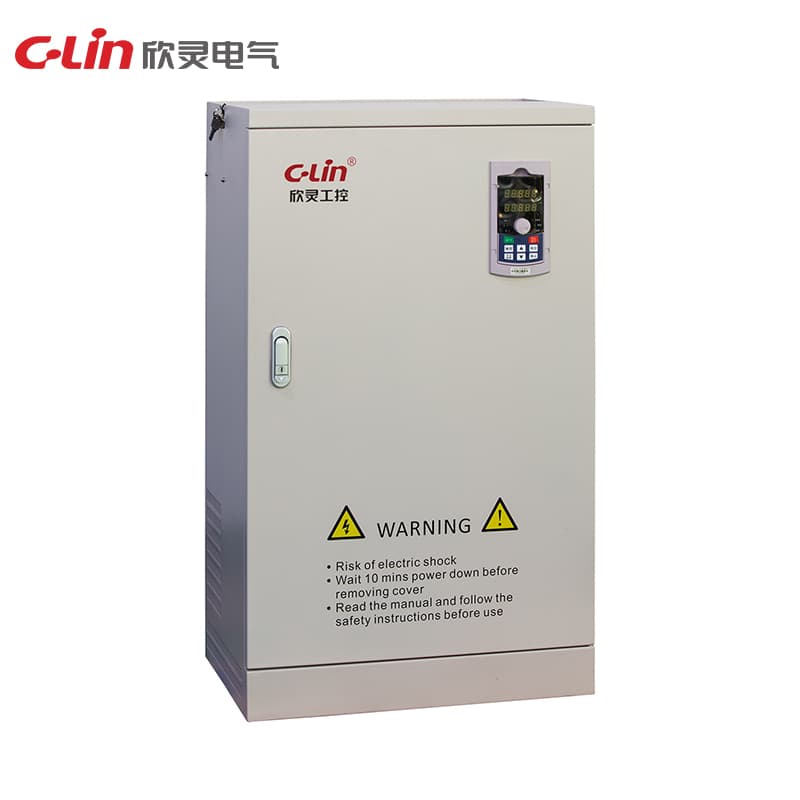

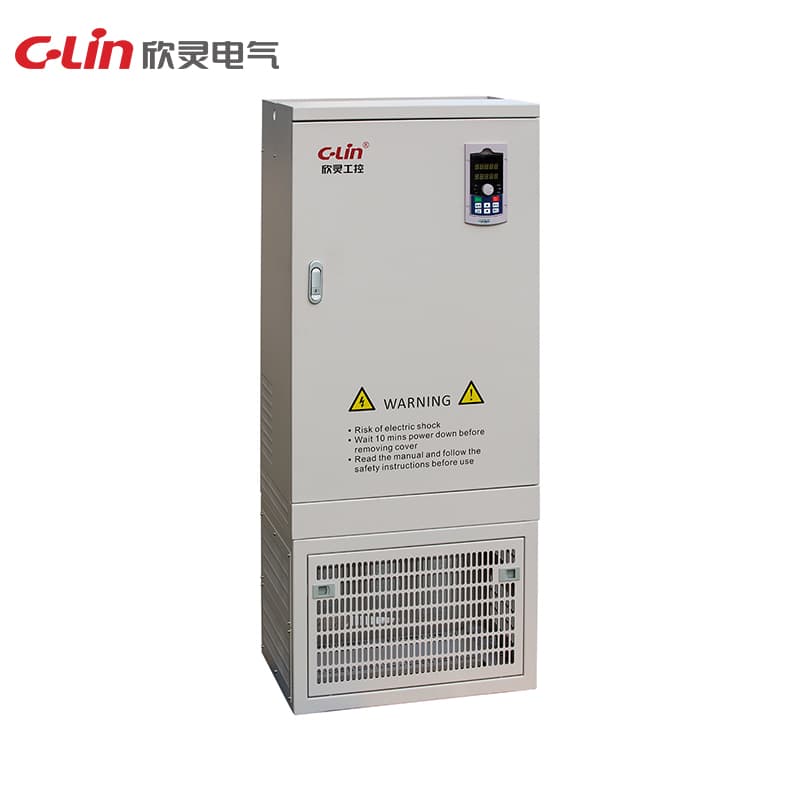

Vector Type Inverter XLP6500 Series

Name: Vector Type Inverter XLP6500 Series
Brand: C-Lin
SKU: XLP6500-220

Model Number: XLP6500-220

XLP6500-11 XLP6500-132 XLP6500-15 XLP6500-18.5XLP6500-220XLP6500-3.7 XLP6500-75 XLP6500-A XLP6500-B

Input voltage: 3PH AC380V 50/60Hz Output voltage: 3PH AC0-380V 0-500Hz Rated power: 0.75Kw, 1.5Kw, 2.2Kw, 3.7Kw Rated current: 2.1A, 3.8A, 5.1A, 9A Control mode: V/F control, vector control Overload capacity: 150% rated current 60s; 190% rated current 1.5s Protection function: overvoltage, overcurrent, undervoltage, overheating, short circuit Protection level: IP20 Dimensions: 185×118×157mm Installation size: 175×107mm(4-M4) Cooling method: forced air cooling Place of use: Altitude ≤ 1000 meters, derated fo

Request Quote

Technical Specifications

Rating	0.4kW 0.75kW 1.5kW 2.2kW
Dimensions	335×217×194mm
Rated power	15kW 18.5kW
Control Mode	V/F control, vector control
Opening size	115×85mm
Place of use	Altitude ≤ 1000 meters, derated for use above altitude No corrosive gases, liquids, etc. in the room
Input Voltage	3PH AC220V 50/60Hz
Product model	XLP6500-A
Rated current	2.3A 3.8A 7.2A 9A
Specification	XLP6500-18.5
Cooling method	Forced air cooling
Output Voltage	3PH AC0-220V 0-500Hz
Speicification	XLP6500-G3.7T2MA
Protection level	IP20
Carrier frequency	0 5Hz~16kHz The carrier frequency can be adjusted automatically according to the load characteristics.
Installation size	324×140mm(4-M6)
Maximum Frequency	Vector control: 0~ 500Hz
Overload capacity	150 per cent of rated current 60s; 190 per cent of rated current 1.5s
Protection function	Overcurrent, overvoltage, undervoltage, overheating, short circuit
Protective function	Over-voltage, over-current, under-voltage, overheat, short circuit
Installation dimensions	592×200mm(4-M10)
Input frequency resolution	Digital setting: 0.01Hz Analogue setting: Maximum frequency×0.025%
