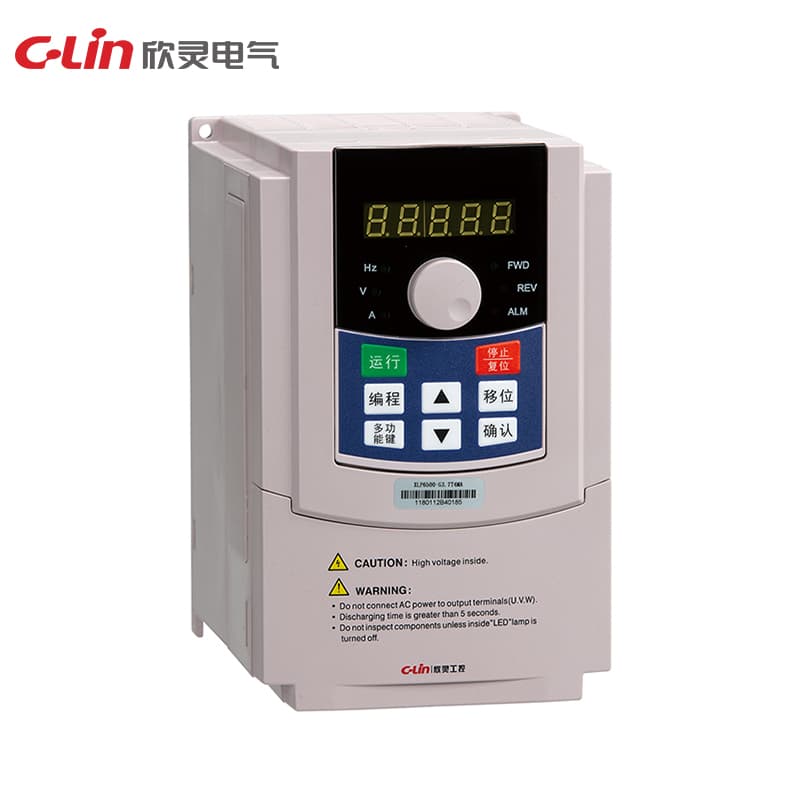

Vector Type Inverter XLP6500 Series
C-Lin

Vector Type Inverter XLP6500 Series

Model Number: XLP6500-3.7

XLP6500-11XLP6500-132XLP6500-15XLP6500-18.5XLP6500-220XLP6500-3.7XLP6500-75XLP6500-AXLP6500-B

Input voltage: 3PH AC380V 50/60Hz Output voltage: 3PH AC0-380V 0-500Hz Rated power: 0.75Kw, 1.5Kw, 2.2Kw, 3.7Kw Rated current: 2.1A, 3.8A, 5.1A, 9A Control mode: V/F control, vector control Overload capacity: 150% rated current 60s; 190% rated current 1.5s Protection function: overvoltage, overcurrent, undervoltage, overheating, short circuit Protection level: IP20 Dimensions: 185×118×157mm Installation size: 175×107mm(4-M4) Cooling method: forced air cooling Place of use: Altitude ≤ 1000 meters, derated fo

Request Quote

Technical Specifications

Rating0.4kW 0.75kW 1.5kW 2.2kW
Dimensions335×217×194mm
Rated power15kW 18.5kW
Control ModeV/F control, vector control
Opening size115×85mm
Place of useAltitude ≤ 1000 meters, derated for use above altitude No corrosive gases, liquids, etc. in the room
Input Voltage3PH AC220V 50/60Hz
Product modelXLP6500-A
Rated current2.3A 3.8A 7.2A 9A
SpecificationXLP6500-18.5
Cooling methodForced air cooling
Output Voltage3PH AC0-220V 0-500Hz
SpeicificationXLP6500-G3.7T2MA
Protection levelIP20
Carrier frequency0 5Hz~16kHz The carrier frequency can be adjusted automatically according to the load characteristics.
Installation size324×140mm(4-M6)
Maximum FrequencyVector control: 0~ 500Hz
Overload capacity150 per cent of rated current 60s; 190 per cent of rated current 1.5s
Protection functionOvercurrent, overvoltage, undervoltage, overheating, short circuit
Protective functionOver-voltage, over-current, under-voltage, overheat, short circuit
Installation dimensions592×200mm(4-M10)
Input frequency resolutionDigital setting: 0.01Hz Analogue setting: Maximum frequency×0.025%
