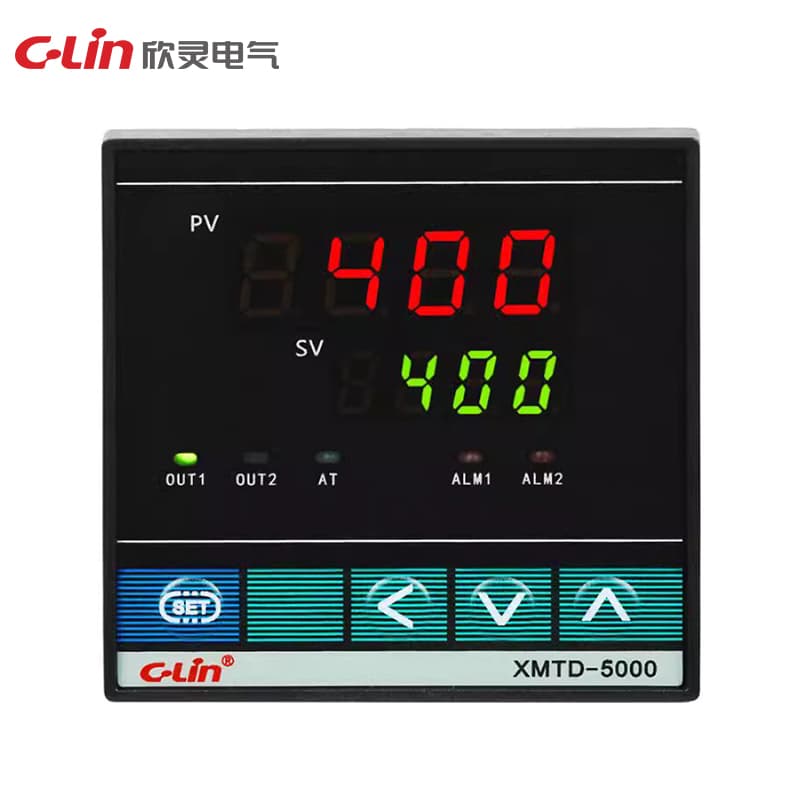

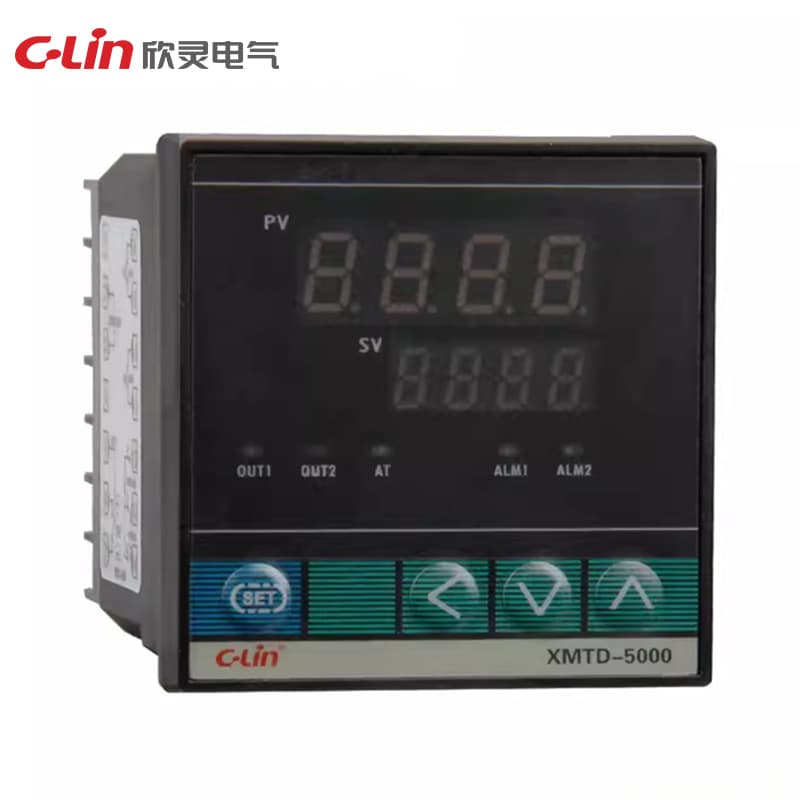

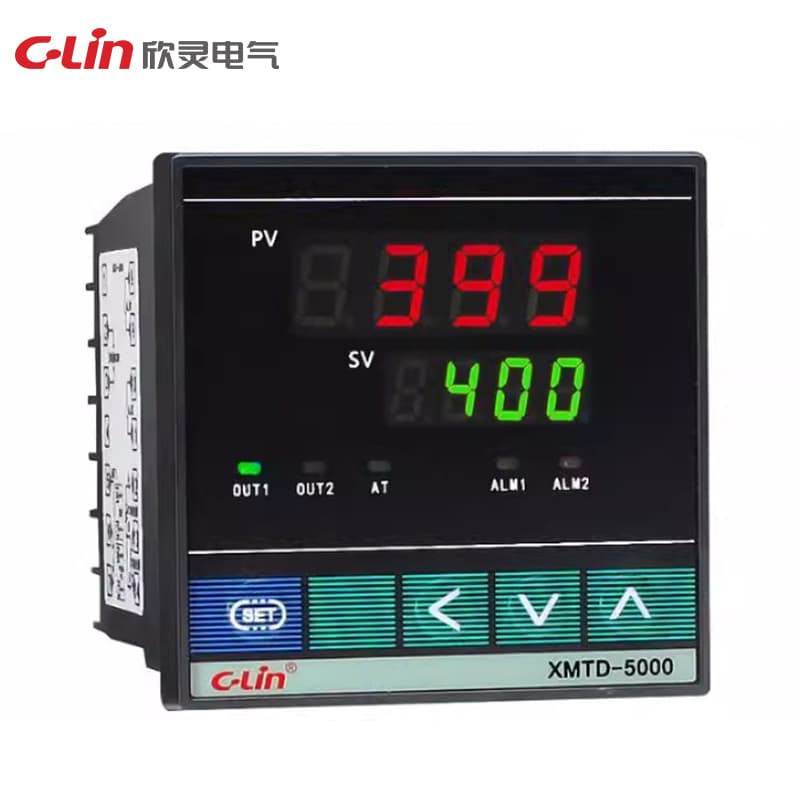

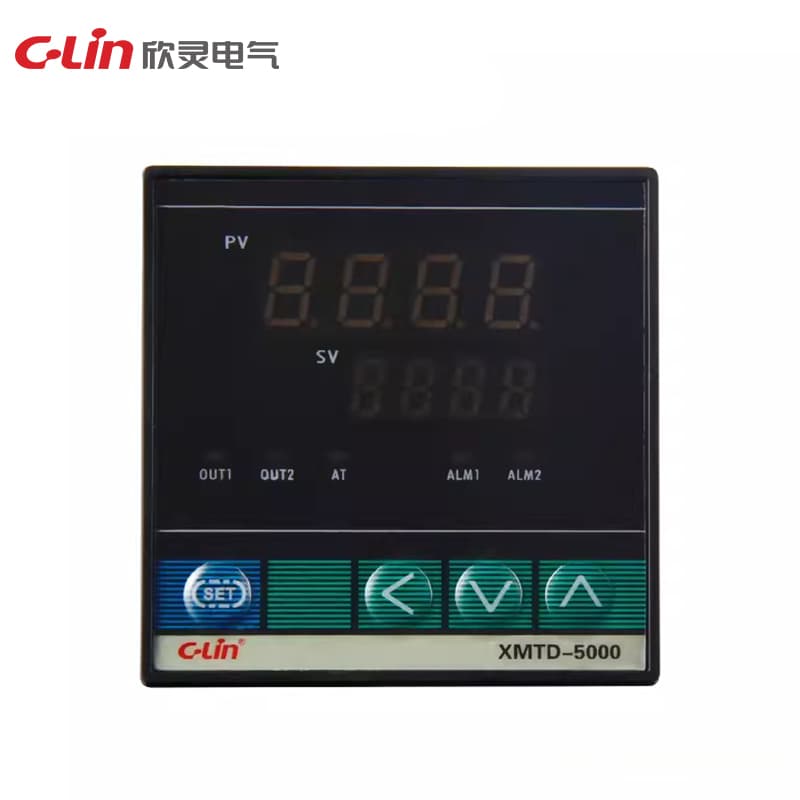

Intelligent Temperature Controller XMT Series

Name: Intelligent Temperature Controller XMT Series
Brand: C-Lin
SKU: XMTD-5000

Model Number: XMTD-5000

XMT-121 XMT-5000 XMTA-2201 XMTA-3001 XMTA-5000 XMTD-2201XMTD-5000XMTD-D XMTE-3001 XMTE-5000 XMTF-5000 XMTG-3000 XMTG-5000

Input signal: Thermocouple: K, E; Thermal resistor: Pt100, Cu50 Measurement error: ≤1.0 level Adjustment method: Three-position relay contact on-off control; Hysteresis control (heating or cooling mode); Setting method: Touch switch setting Working power supply: AC220V, AC380V Dimensions: 160×80×92mm Opening size: 151×75mm Installation method: Panel type Typical applications: used in drying boxes, ovens, plastic machinery, etc.

Request Quote

Technical Specifications

Model	XMTD-5000
Dimension	160×80×92mm
Hole size	151×75mm
Alarm mode	1 set of alarm relay contact outputs; 2 set of alarm relay contact outputs
Control mode	Two-position relay on-off control; PID regulation relay on-off control; PID regulation drive SSR voltage control
Input signal	Thermocouple: K, E; thermal resistance: Pt100, Cu50
Setting mode	Touch switch setting
Supply voltage	AC220V, AC380V
Adjustment mode	Three-position relay contact on-off control Hysteresis control (heating or cooling mode)
Measurement error	≤ 1.0 class
Measurement signal	Thermocouple: K, E, J; thermal resistance: Pt100, Cu50
Additional function	RS485 communication
Installation method	Panel type
Typical application	Used for drying boxes, ovens, plastic machines etc.
