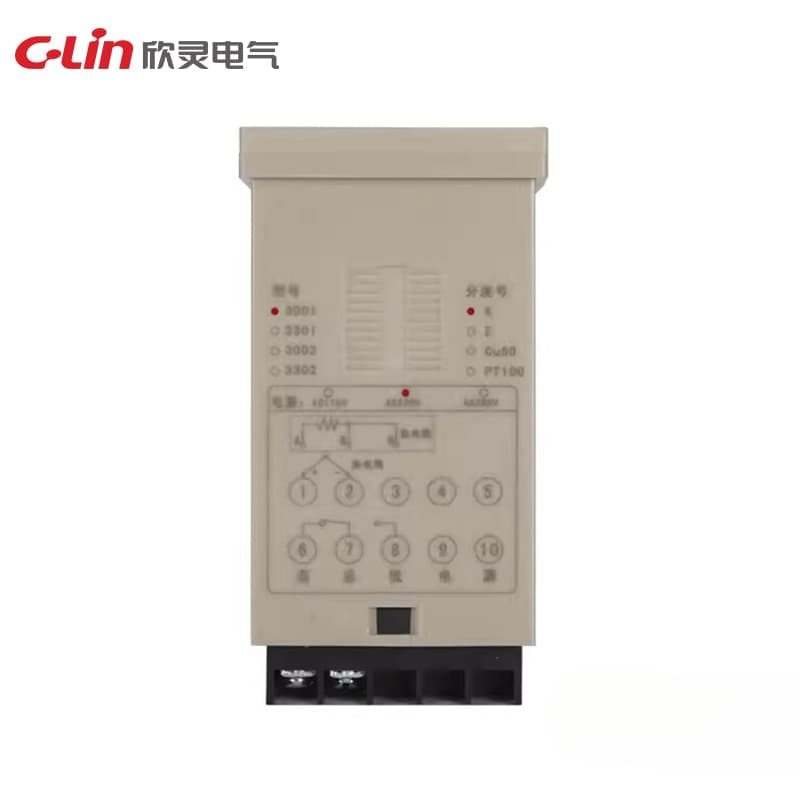

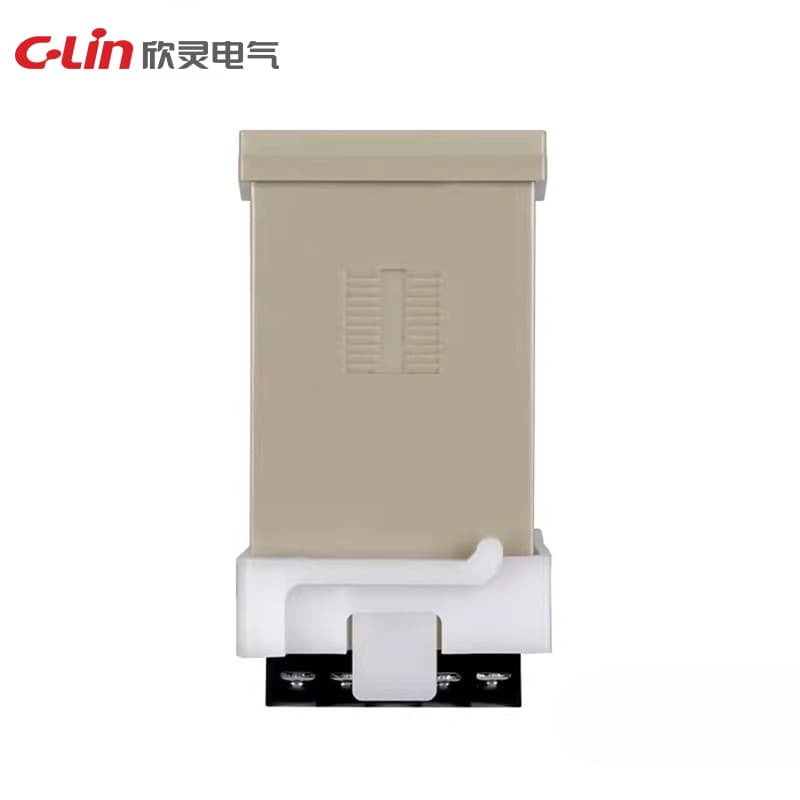

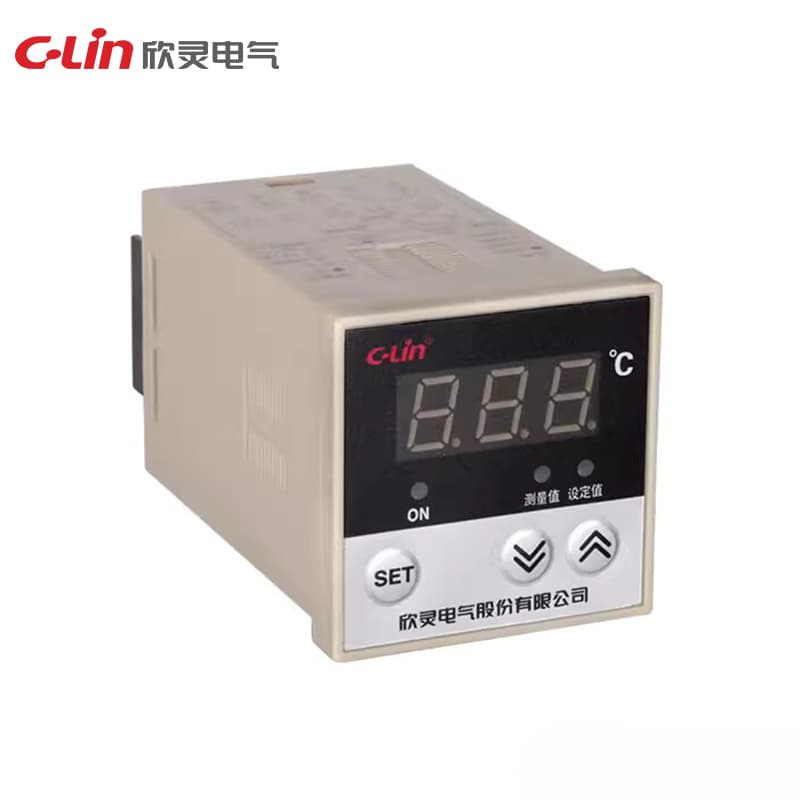

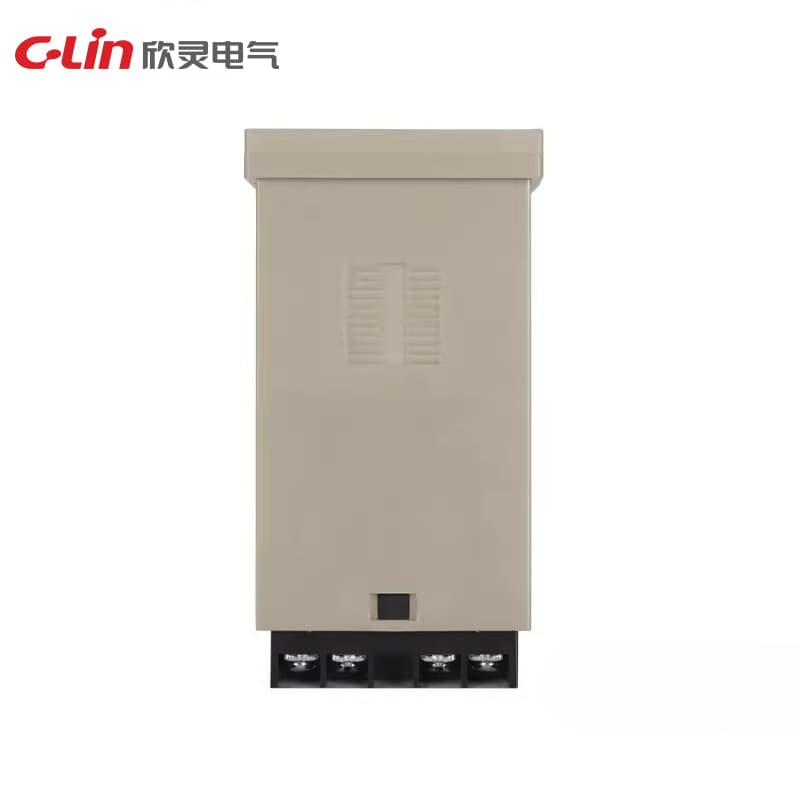

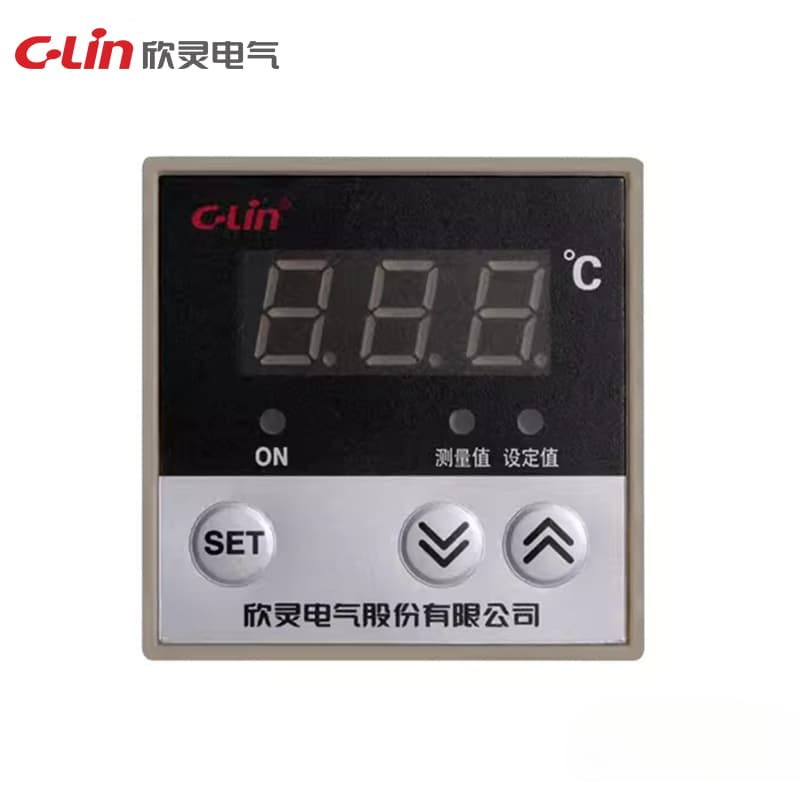

Intelligent Temperature Controller XMT Series
Model Number: XMTG-3000
XMT-121XMT-5000XMTA-2201XMTA-3001XMTA-5000XMTD-2201XMTD-5000XMTD-DXMTE-3001XMTE-5000XMTF-5000XMTG-3000XMTG-5000
Input signal: Thermocouple: K, E; Thermal resistor: Pt100, Cu50 Measurement error: ≤1.0 level Adjustment method: Three-position relay contact on-off control; Hysteresis control (heating or cooling mode); Setting method: Touch switch setting Working power supply: AC220V, AC380V Dimensions: 160×80×92mm Opening size: 151×75mm Installation method: Panel type Typical applications: used in drying boxes, ovens, plastic machinery, etc.
Request QuoteTechnical Specifications
| Model | XMTG-3000 |
| Dimension | 160×80×92mm |
| Hole size | 151×75mm |
| Alarm mode | 1 set of alarm relay contact outputs; 2 set of alarm relay contact outputs |
| Control mode | Two-position relay on-off control; PID regulation relay on-off control; PID regulation drive SSR voltage control |
| Input signal | Thermocouple: K, E; thermal resistance: Pt100, Cu50 |
| Setting mode | Touch switch setting |
| Supply voltage | AC220V, AC380V |
| Adjustment mode | Three-position relay contact on-off control Hysteresis control (heating or cooling mode) |
| Measurement error | ≤ 1.0 class |
| Measurement signal | Thermocouple: K, E, J; thermal resistance: Pt100, Cu50 |
| Additional function | RS485 communication |
| Installation method | Panel type |
| Typical application | Used for drying boxes, ovens, plastic machines etc. |
